LE 300 XXT 230V, 18 meters, with a trolley and a high-quality remote control
€434.39 €359.00
LE 300 XXT 230V, 18 meters, with a trolley and a high-quality remote control

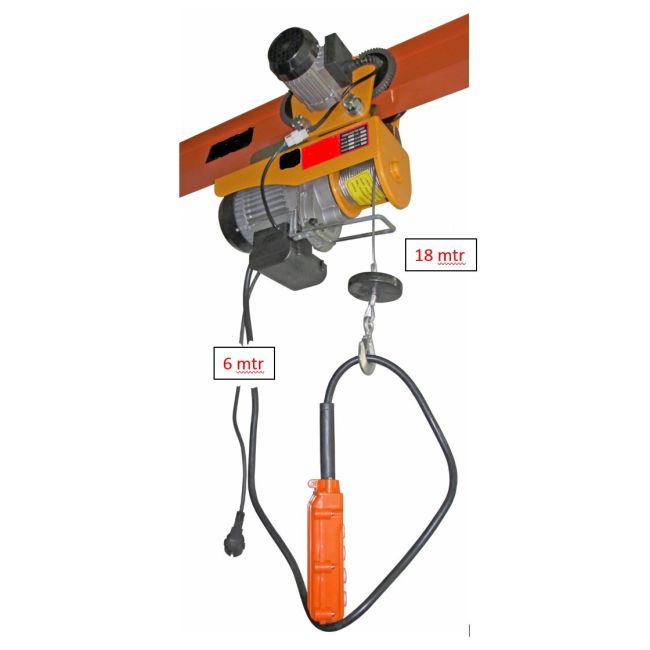

Experience maximum efficiency with the LE 300 XXT 230V trolley, equipped with a 6-meter power cord, an 18-meter steel cable, and a 6-meter control cable. With a load capacity of 1,000 kg, an impressive speed of 16.4 m/min, and innovative features, this trolley offers a first-class lifting solution.
Adjusting the trolley to a wider beam
The trolley comes standard with M18 connecting rods. If the trolley needs to be mounted on a wider I-beam, the distance between the four wheels can easily be increased.
Procedure:
- Replace the connecting rods
- Use M18 threaded rods.
- Cut two threaded rods to the desired length, matching the width of the beam.
- Replace the existing threaded rods with the longer ones.
- Install the angle profiles
- The two angle profiles on which the winch is mounted can be flipped over (facing outward) if desired.
- This increases the distance between the flanges of the angle profiles, making the trolley suitable for an even wider profile.
- Secure the assembly
- Use four additional M18 nuts and washers.
- Install a nut and washer on both sides of each angle profile so that the angle profiles are securely clamped between the nuts.
- Tighten all nuts securely and check that the assembly is free of play.
- Adjust the rollers
- Slide the four casters into the correct position so that they run properly on the flanges of the I-beam.
- Check that all four wheels rest evenly on the profile and can rotate freely.
- After assembly, check again to make sure all fasteners are securely tightened.
With longer M18 threaded rods, the trolley can easily be adjusted to fit virtually any desired profile width.
<img src="https://www.winch-shop.eu/media/wysiwyg/TD_M18.jpg" alt="TD M18" width="400" height="400">
SKU
2.E.1
EAN Number:
7439657024023
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
LE 300 XXT 230V, 18 meters, with a trolley and high-quality remote control
This LE 300 XXT 230V trolley sets new standards in efficiency and reliability. Thanks to the extended cable lengths—6 meters for the power cable, 18 meters for the steel cable, and 6 meters for the control cable—you can work flexibly in a variety of environments.
Technical specifications:
-
Trolley:
- Load capacity: 1,000 kg
- Travel speed: 16.4 m/min
- Beam height: 10–22 cm
- Beam width: 68–110 mm
-
Winch:
- Lifting capacity: 300 kg (600 kg with guide roller)
- Upper limit stops
- Speed: 8 m/min
- Motor with thermal protection
- IP54 certification
- Cable length: 4.8 x 18 meters
- Automatic Brake on load hook
- Includes Return pulley (>200 kg & 4 m/min)
- Control cable: 6 m
- Connection cable: 6 m
- TÜV, EMC, CE certified
- Complies with EN-14492-2
Additional features:
- Complies with EN-11492-2 and features a patented design
- CE/GS/EMC/RoHS approval
- Upper limit function
- Anti-reverse function
- Thermal protection connection
- IP54 protection rating
- Insulation Class B
- Mechanism group M1
- Duty cycle: S3-25%-10 min
- Rated voltage: 220/230 V ~ 50 Hz
- Rated current: 3.0 A
- Input power: 850 W
- Lifting capacity: 300 kg (single cable), 600 kg (double cable)
- Lifting height: 18 m (single cable), 9 m (double cable)
- Lifting speed: 8 m/min (single cable), 4 m/min (double cable)
- Steel cable diameter: 4.8 mm
- Tensile strength of steel cable ≥ 1870 N/mm²
Harmonized System (HS) code: 8425 1100
Warning: Follow all safety instructions and precautions in the manual.
Warranty: We offer a comprehensive warranty on this product. Details can be found in the enclosed warranty statement.
| EAN | 7439657024023 |
|---|---|
| Weight | 21.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
| Force | 10-200 |
| Speed (m/min) | 11-20 |
