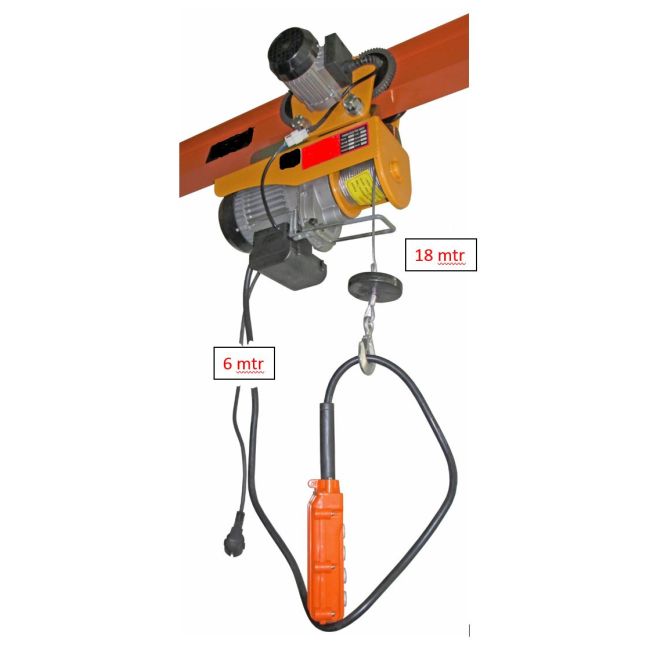

LE 500 XXT 230V trolley - Electric wire rope hoist with 18 m cable and 6 m control and main cable
€489.93 €404.90
LE 500 XXT 230V trolley - Electric wire rope hoist with 18 m of cable and 6 m of control and main cable
Experience maximum performance with the LE 500 XXT 230V trolley. With a 6 m electric cable, an 18 m steel wire rope, and a 6 m control cable, this product sets new standards. Perfect for loads up to 1,000 kg, with an impressive lifting speed of 16.4 m/min. Don’t miss out on the high-quality remote control!
Adjusting the trolley to a wider beam
The trolley comes standard with M18 connecting rods. If the trolley needs to be mounted on a wider I-beam, the distance between the four wheels can easily be increased.
Procedure:
- Replace the connecting rods
- Use M18 threaded rods.
- Cut two threaded rods to the desired length, matching the width of the beam.
- Replace the existing threaded rods with the longer ones.
- Install the angle profiles
- The two angle profiles on which the winch is mounted can be flipped over (facing outward) if desired.
- This increases the distance between the flanges of the angle profiles, making the trolley suitable for an even wider profile.
- Secure the assembly
- Use four additional M18 nuts and washers.
- Install a nut and washer on both sides of each angle profile so that the angle profiles are securely clamped between the nuts.
- Tighten all nuts securely and check that the assembly is free of play.
- Adjust the rollers
- Slide the four casters into the correct position so that they run properly on the flanges of the I-beam.
- Check that all four wheels rest evenly on the profile and can rotate freely.
- After assembly, check again to ensure that all fasteners are securely tightened.
With longer M18 threaded rods, the trolley can easily be adjusted to fit virtually any desired profile width.
<img src="https://www.winch-shop.eu/media/wysiwyg/TD_M18.jpg" alt="TD M18" width="400" height="400">
SKU
2.F.1
EAN Number:
7439657024054
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
LE 500 XXT 230V Trolley - Electric Wire Rope Hoist with 18 m Cable and 6 m Control and Main Cable
This LE 500 XXT 230V trolley sets new standards in performance and versatility. With a 6 m electric cable, 18 m steel wire rope, and a 6 m control cable, it offers unmatched flexibility and freedom of movement.
Technical specifications:
-
Trolley:
- Load capacity: 1,000 kg (2,200 lb)
- Travel speed: 16.4 m/min
- Beam height: 10–22 cm
- Beam width: 68–110 mm
-
Winch:
- Lifting capacity: 500 kg (1,000 with guide roller)
- Upper limit stops
- Lifting speed: 8 m/min
- Motor with thermal switch (temperature protection)
- Protection class IP54
- 5.6 mm x 18 meters steel cable
- Load hook with automatic brake
- Includes Return pulley (>200 kg & 4 m/min)
- Control cable: 6 m
- Connection cable (approx. 6 m long)
- TÜV, EMC, CE certified
- Compliant with EN-14492-2
Additional features:
- Complies with the EN-11492-2 standard and features a patented design
- CE/GS/EMC/RoHS approval
- Upper limit function
- Anti-rewind function
- Thermal protection connection
- IP54 protection rating
- Insulation Class B
- Mechanism group M1
- Duty cycle: S3-25%-10 min
- Rated voltage: 220/230 V ~ 50 Hz
- Rated current: 4.0 A
- Input power: 950 W
- Lifting capacity: 100 kg (single cable), 200 kg (double cable)
- Lifting height: 18 m (single cable), 9 m (double cable)
- Lifting speed: 8 m/min (single cable), 4 m/min (double cable)
- Steel cable diameter: 5.6 mm
- Tensile strength of the steel cable ≥ 1870 N/mm²
Additional information:
- Harmonized System (HS) code: 8425 1100
Warranty and warnings:
Please refer to the enclosed documentation for warranty details and important safety information.
| EAN | 7439657024054 |
|---|---|
| Weight | 34.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
| Force | 10-200 |
| Speed (m/min) | 11-20 |
