LE 200 XXT 230V Trolley - Electric Winch with 18 m Cable

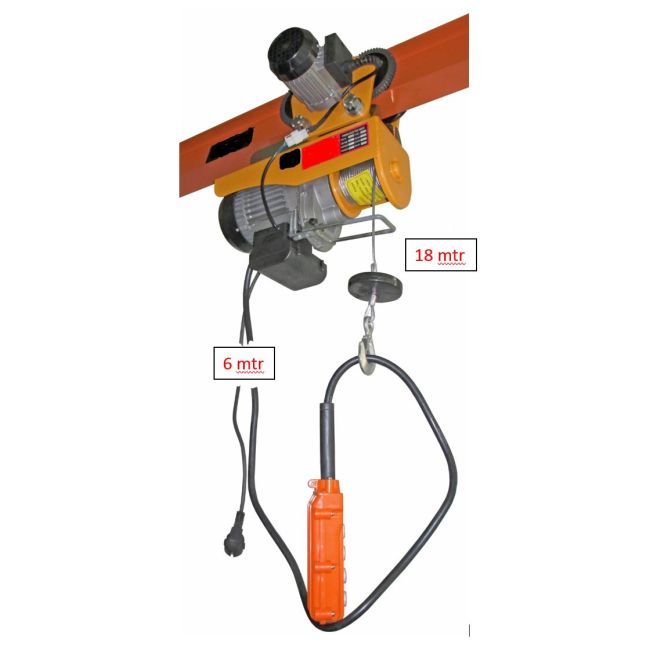

The LE 200 XXT 230V trolley offers outstanding performance and flexibility. With an 18-meter steel cable and a 6-meter control and power cable, loads of up to 1,000 kg can be lifted and lowered with precision. The ideal solution for demanding applications.
Adjusting the trolley to a wider beam
The trolley is equipped with M18 connecting rods as standard. If the trolley needs to be mounted on a wider I-beam, the distance between the four wheels can easily be increased.
Procedure:
- Replace the connecting rods
- Use M18 threaded rods.
- Cut two threaded rods to the desired length, matching the width of the beam.
- Replace the existing threaded rods with the longer ones.
- Install the angle profiles
- The two angle profiles on which the winch is mounted can be flipped over (facing outward) if desired.
- This increases the distance between the flanges of the angle profiles, making the trolley suitable for an even wider profile.
- Secure the assembly
- Use four additional M18 nuts and washers.
- Install a nut and washer on both sides of each angle profile so that the angle profiles are securely clamped between the nuts.
- Tighten all nuts securely and check that the assembly is free of play.
- Adjust the rollers
- Slide the four casters into the correct position so that they run properly on the flanges of the I-beam.
- Check that all four wheels rest evenly on the profile and can rotate freely.
- After assembly, check again to ensure that all fasteners are securely tightened.
With longer M18 threaded rods, the trolley can easily be adjusted to fit virtually any desired profile width.
<img src="https://www.winch-shop.eu/media/wysiwyg/TD_M18.jpg" alt="TD M18" width="400" height="400">
SKU
2.E.2
EAN Number:
7439657024085
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
LE 200 XXT 230V Trolley - Electric Winch with 18 m Cable
This electric steel wire winch is designed for demanding applications and sets new standards in performance and reliability. Its key features include:
-
Trolley:
- Load capacity: 1,000 kg
- Travel speed: 16.4 m/min
- Support beam height: 10–22 cm
- Beam width: 68–110 mm
-
Winch:
- Lifting capacity: 200 kg (400 kg with guide roller)
- Upper limit switch
- Lifting speed: 8 m/min
- Motor with thermal protection
- IP54 protection
- 18-meter steel cable
- Automatic Brake on load hook
- Includes Return pulley (over 200 kg & 4 m/min)
- 6 m control cable
- Connection cable (approx. 6 m long)
- TÜV, EMC, CE certified
- Complies with EN-11492-2
-
Additional features:
- Complies with the EN-11492-2 standard and features a patented design
- CE/GS/EMC/RoHS approval
- Upper limit function
- Anti-reverse function
- Thermal circuit breaker
- IP54 protection rating
- Insulation Class B
- Mechanism group M1
- Duty cycle: S3-25%-10 min
- Rated voltage: 220/230 V ~ 50 Hz
- Rated current: 2.0 A
- Input power: 450 W
- Lifting capacity: 200 kg (single cable), 400 kg (double cable)
- Lifting height: 18 m (single cable), 9 m (double cable)
- Lifting speed: 8 m/min (single cable), 4 m/min (double cable)
- Steel cable diameter: 3.8 mm
- Tensile strength of the steel cable ≥ 1,870 N/mm²
| EAN | 7439657024085 |
|---|---|
| Weight | 17.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
| Force | 10-200 |
| Speed (m/min) | 11-20 |
