LE 100 XXT 230V Hoist with Trolley - High Lifting Capacity, 18 m Steel Cable, 6 m Control and Main Cable
€361.31 €298.60

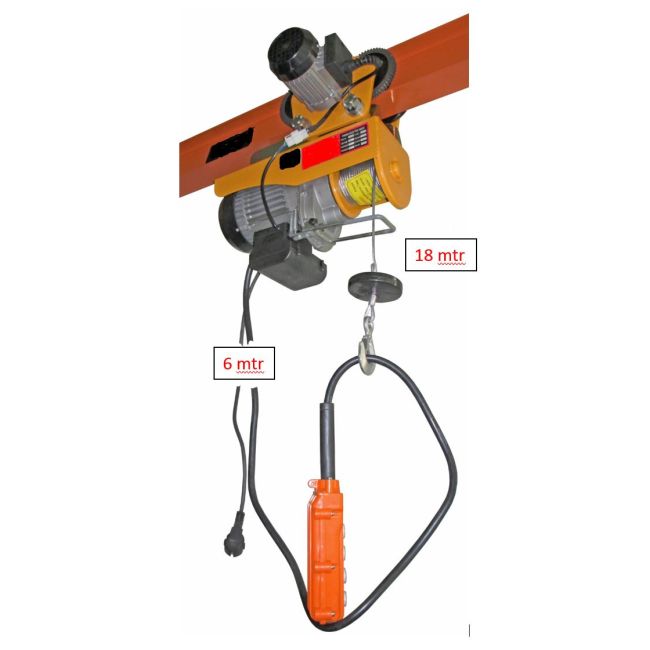

LE 100 XXT 230V Hoist with Trolley - High Lifting Capacity, 18 m Steel Cable
The LE 100 XXT 230V trolley hoist delivers impressive performance with a load capacity of 1,000 kg and a speed of 16.4 m/min. With 18 m of steel wire rope and a 6 m control cable, it is ideal for a wide range of applications.
Adjusting the trolley to a wider beam
The trolley is equipped with M18 connecting rods as standard. If the trolley needs to be mounted on a wider I-beam, the distance between the four wheels can easily be increased.
Procedure:
- Replace the connecting rods
- Use M18 threaded rods.
- Cut two threaded rods to the desired length, matching the width of the beam.
- Replace the existing threaded rods with the longer ones.
- Install the angle profiles
- The two angle profiles on which the winch is mounted can be flipped over (facing outward) if desired.
- This increases the distance between the flanges of the angle profiles, making the trolley suitable for an even wider profile.
- Secure the assembly
- Use four additional M18 nuts and washers.
- Install a nut and washer on both sides of each angle profile so that the angle profiles are securely clamped between the nuts.
- Tighten all nuts securely and check that the assembly is free of play.
- Adjust the rollers
- Slide the four casters into the correct position so that they run properly on the flanges of the I-beam.
- Check that all four wheels rest evenly on the profile and can rotate freely.
- After assembly, check again to make sure all fasteners are securely tightened.
With longer M18 threaded rods, the trolley can easily be adjusted to fit virtually any desired profile width.
<img src="https://www.winch-shop.eu/media/wysiwyg/TD_M18.jpg" alt="TD M18" width="400" height="400">
SKU
2.F.2
EAN Number:
7439657024030
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The LE 100 XXT 230 V hoist winch impresses with its robust design and impressive specifications:
-
Trolley:
- Load weight: 1000 kg
- Speed: 16.4 m/min
- Height of beam: 10-22 cm
- Width beam: 68-110 mm
-
Winch:
- Lift capacity: 100 kg (200 with guide roller)
- Dimensions: 48 x 42 x 18 cm
- Speed: 8 m/min
- Motor with thermal circuit breaker (IP54)
- 3 mm x 18 m steel cable
- Automatic brake
- Includes Reversing roller (over 200 kg & 4 m/min)
- Control cable: 6 m
- Connection cable: approx. 6 m
- TÜV, EMC, CE certified
- Complies with EN-14492-2
-
Additional features:
- Meets EN-11492-2 standard and patented design
- CE/GS/EMC/RoHS approval
- Upper and lower limitation function
- Function against reverse winding
- Thermal protection connection
- Protection class IP54
- Insulation class B
- Mechanism group M1
- Work cycle: S3-25%-10min
- Rated voltage: 220/230V ~ 50Hz
- Rated current: 2.0A
- Input power: 450W
- Lifting weight: 100kg (single line), 200kg (double line)
- Lifting height: 18m (single line), 9m (double line)
- Lifting speed: 8m/min (single strand), 4m/min (double strand)
- Diameter of steel cable: 3.0 mm
- Tensile strength of wire rope ≥ 1870N/mm2
Warning: Please follow all safety instructions and use the hoist according to the guidelines.
Warranty: Please read the warranty terms carefully to understand the coverage and conditions.
| EAN | 7439657024030 |
|---|---|
| Weight | 17.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
| Force | 10-200 |
| Speed (m/min) | 11-20 |
