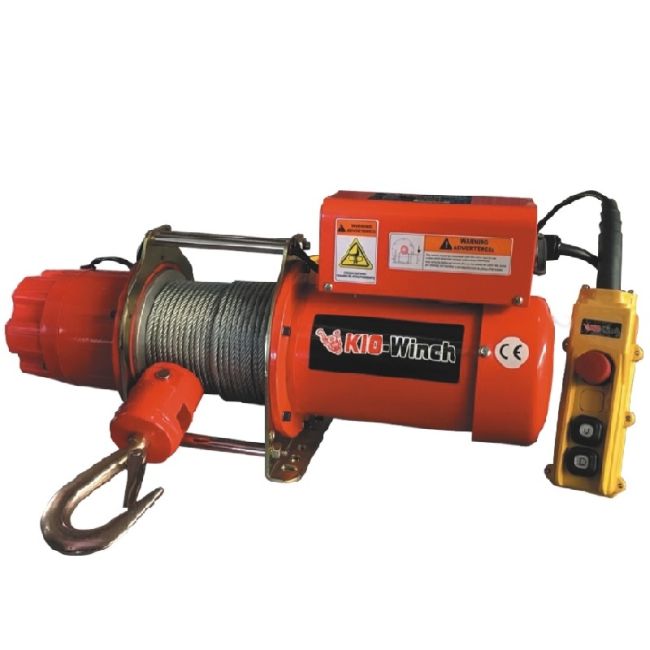

KIO GRV 200L 230V 200 kg 50 m - Electric Lifting Winch

The KIO GRV 200 L electric wire rope winch is the ideal solution for effortless lifting of loads up to 200kg at a maximum height of 50m. Equipped with an AC motor, this wire rope hoist is specially designed for winch applications and offers maximum torque for efficient work.

With a galvanized steel cable and a detachable 24V control unit, including 20m of cable, the KIO GRV 200 L electric wire rope winch meets all requirements. The electromagnetic brake guarantees safe operation even in case of power failure, and the thermal overload protection ensures reliable performance.

The positive attachment of the wire rope to the drum, heavy-duty ball bearings and the closed design of the drum flanges effectively prevent cable entrapment between the drum and support castings.

Thanks to the planetary gearbox, the electric wire rope hoist achieves maximum mechanical efficiency and operates quietly. Ideal for various applications such as lifting boats on ramps or pulling loads in containers.

Technical data:

• Model: KIO GRV-200L
• Voltage: 230V
• Lifting capacity: 200kg
• Speed: 12-18m/min
• Motor rating IP44: 0.6 kW / 4 poles
• Maximum lifting height: 48m
• Rope diameter × length: 5mm × 50m
• Gross weight: 35kg

Further advantages:

• Versatile for indoor and outdoor use
• Recommended for use with canopy outside
• Safe and convenient with 24V control cable and 6m mains cable (230V)

Note: Winches should not be used to move people.

Warranty: 24 months warranty against manufacturing and material defects from date of purchase. Steel cables are excluded from warranty.

Order the KIO GRV 200 L electric wire rope hoist now and experience effortless and safe lifting for various applications.
