KIO CKW 300L 230V 300 kg 39 m - 230 V, Electric Lifting Winch - Radiographic Remote Control

KIO CKW 300L 230V 300 kg 39 m - 230 V, Electric Hoisting Winch - Radiographic Remote Control

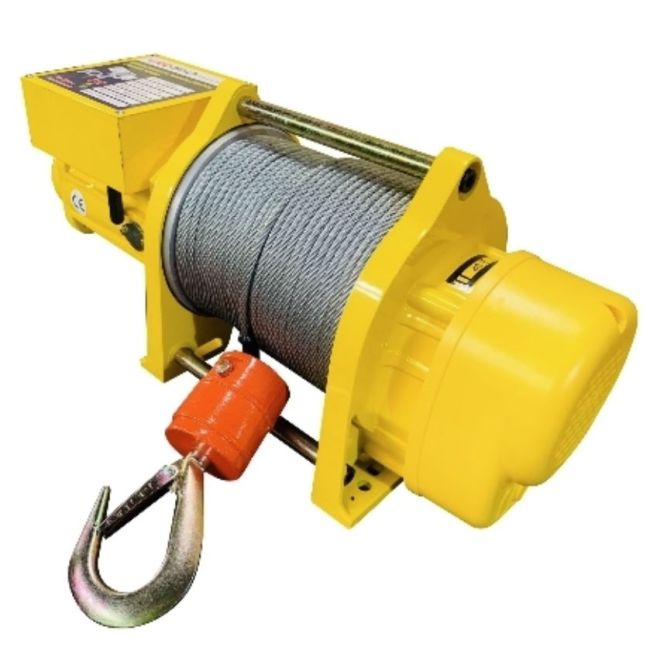

The KIO CKW 300 L electric hoisting winch is a highly professional solution for demanding applications. The friction-locked attachment of the wire rope to the drum ensures safe and reliable performance. With an electromagnetic, spring-operated ground fault brake, this winch offers additional safety.

Heavy-duty, high-efficiency ball bearings on all running surfaces ensure smooth operation. The planetary gearbox maximizes mechanical efficiency, while closed drum flanges prevent rope jamming between the drum and support castings.

Thanks to its quiet operation, this winch offers not only power but also comfort. Please note that this winch is not suitable for moving people - safety is paramount.

Technical specifications:

• Motor: 230 V
• Lifting capacity: 300 kg
• Lifting speed: 16-25 m/min
• Power consumption: 2300 W
• Lifting height: 39 m
• Steel cable: Ø7 mm × 40 m
• Energy efficiency: 25%
• Net weight: 30 kg
• Gross weight: 36 kg

Note: When used as a towing winch, the force on a flat surface can be multiplied by a factor of 7. For example, a 100 kg winch can move a 700 kg load. Consider friction on slopes.

Turning Roller Advantages:

• Doubles the force Lifting force.
• Increases force by about 85% at half speed
