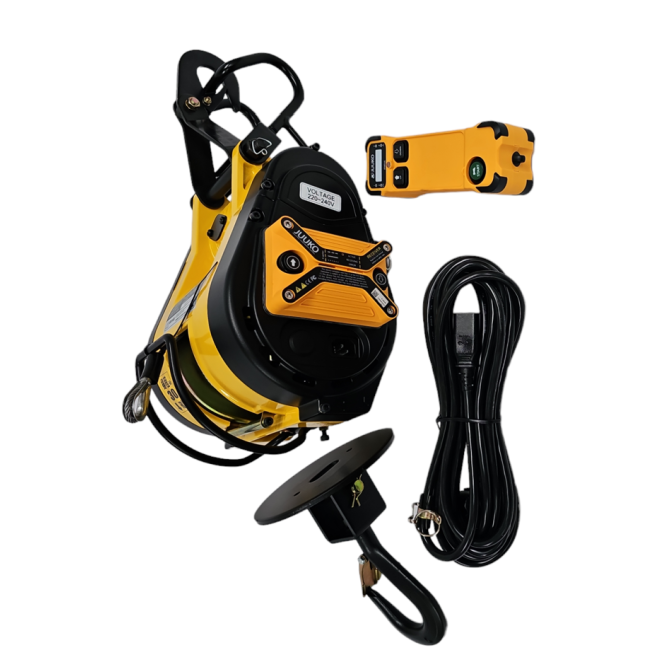

KIO SRW 200 (kg) 230V 29 m - Electric Lifting Winch - Radiographic Remote Control
€1,052.70 €870.00
KIO SRW 200 230 V 29 m Electric hoisting winch, radio remote control, scaffolding winch 200 kg
Operated with a radio remote control and a button on the winch itself.
- Low weight
For easy installation - Stops automatically
Stops automatically and the and lower upper position. - Dynamic and mechanical pawl wheel brake
For fast and safe braking. - Operates on local power supply.
- The cable has a hook with safety lock.
- Emergency stop function is available on request.
|
Model |
Load |
Speed |
Motor 230V |
Voltage |
Wire rope |
Gross Weight |
Duty cycle |
|
SRW-200 Radio Remote |
200 kg |
23M/min |
1500W x 12.5A |
220-240V |
Ø 5mm x 29m |
20 |
25%ED150times/1HR |
SKU
1.F.1
EAN Number:
7439657013072
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
KIO SRW 200 230 V 29 m Electric hoisting winch, radio remote control, scaffolding winch 200 kg
Operated with a radio remote control and a button on the winch itself.
- Low weight
For easy installation - Stops automatically
Stops automatically and the and lower upper position. - Dynamic and mechanical pawl wheel brake
For fast and safe braking. - Operates on local power supply.
- The cable has a hook with safety lock.
- Emergency stop function is available upon request.
Easy to attach to construction scaffold. With its unique design and elegant shape, makes transporting construction materials etc. to upper floors and roofs much easier and safer.
The suspension device with locking protection facilitates installation and ensures safe working.
The ideal hoist for builders and roof workers with a large useful length of cable. The ideal hoist for all types of scaffolding and beams.
High quality powder coated construction ensures a reliable and durable lifting device.
Hoist uses dynamic braking system for both static and dynamic loads with upper and lower limit switches.
Warning
This product is not intended for lifting or moving people.
Keep hands, clothing, jewelry, etc. Away from wire ropes, drums and other moving parts.
Warranty
Each new hoist is warranted against defects in workmanship and materials for a period of 24 months from the date of purchase.
Each new hoist is warranted against defects in workmanship and materials for a period of 24 months from the date of purchase.
|
Model |
Load |
Speed |
Motor 230V |
Voltage |
Wire rope |
Gross Weight |
Duty cycle |
|
SRW-200 Radio Remote |
200 kg |
23M/min |
1500W x 12.5A |
220-240V |
Ø 5 mm x 29m |
20 |
25%ED150times/1HR |
| EAN | 7439657013072 |
|---|---|
| Weight | 20.000000 |
| HS Code | 842531-00-90 |
| Applications | Construction and scaffolding, Caravans and campers, Industry and workshops, Rescue services and assistance, Warehousing and logistics |
| Type of winch or parts | Lifting winch: Cutting load falls |
| Energy source | 230 VAC |
| Force | 10-200 |
| Speed (m/min) | 20+ |
| Cable length (m) | 21-30 |
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
 | KIO TC4 Programming | 349 KB | Download |
