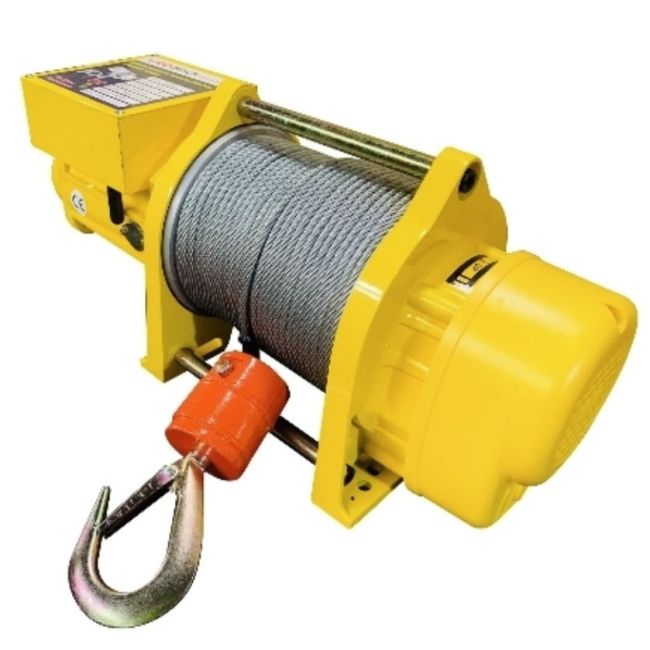

KIO CKW 200LL 230V 200 kg 118 m - Electric Lifting Winch - Radiographic Remote Control

The KIO CKW 200 LL electric hoisting winch sets standards in performance and reliability. With a lifting capacity of 200 kg and a 118 m long steel cable, it is the ideal solution for demanding lifting and pulling applications.

Technical specifications:

• Load capacity: 200 kg
• Speed: 11-16 m/min
• Motor: 1400W, 230 V
• Lifting height: 118 m
• Steel cable: Ø5 mm × 120 m
• Efficiency level (ED): 25%
• Net weight (N.W): 35 kg
• Gross weight (G.W): 38 kg
• Radio remote control included

Product Features:

• Power locked attachment of the wire rope to the drum
• Electromagnetic spring-loaded ground fault brake for maximum safety
• Heavy-duty ball bearings ensure high efficiency
• Planetary gearbox for maximum mechanical efficiency
• Closed drum flanges prevent cable snagging
• Quiet operation

Warning:

Winches should not be used to move people.

Warranty:

The KIO CKW 200 LL electric hoist winch is warranted against defects in workmanship and materials for 24 months from the date of purchase. Cables are excluded from the warranty.

Application Notes:

• This winch is ideal for lifting boats on ramps, towing loads in containers, etc.
• Suitable for outdoor use, but a canopy over the winch is recommended.
• When used as a towing winch, the force on level ground can be multiplied by a factor of 7.
• When using a Turning Roller to double the Lifting Force, the force is increased by approximately 85% at half speed.
• Note that hoisting winches do not have a freewheel clutch.
