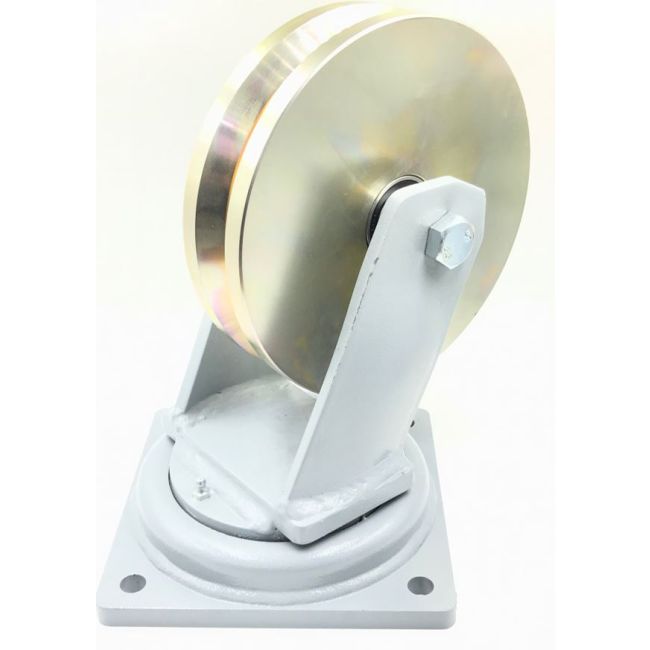

KBVD 600-1200 - Turning roller for 1600-2400 kg loads - rotatable

The KBVD 1600-2400 reversing roller is the ideal complement to cable winches and allows easy diversion of loads in the 1600-2400 kg range. Features a swivel mechanism for maximum flexibility and ball bearings for smooth operation.

• Technical specifications:
  • Load capacity: 1600-2400 kg
  • Suitable for 14-22 mm diameter cables (plastic, rope, shear cable or winch rope)
  • With high-quality ball bearings for optimal performance
  • Robust base plate with dimensions 180 x 180 mm
  • Hole pattern 145 x 145 mm, Ø13.5 mm, 4x
  • Overall height: 275 mm
  • Wheel/wheel: 50 mm * 200 mm, V = 26 mm * 13 mm depth
  • Pivot shift: 63 mm

The KBVD 1600-2400 offers maximum stability and flexibility when deflecting loads. With high-quality ball bearings and a robust base plate, it is the perfect solution for demanding lifting tasks.
