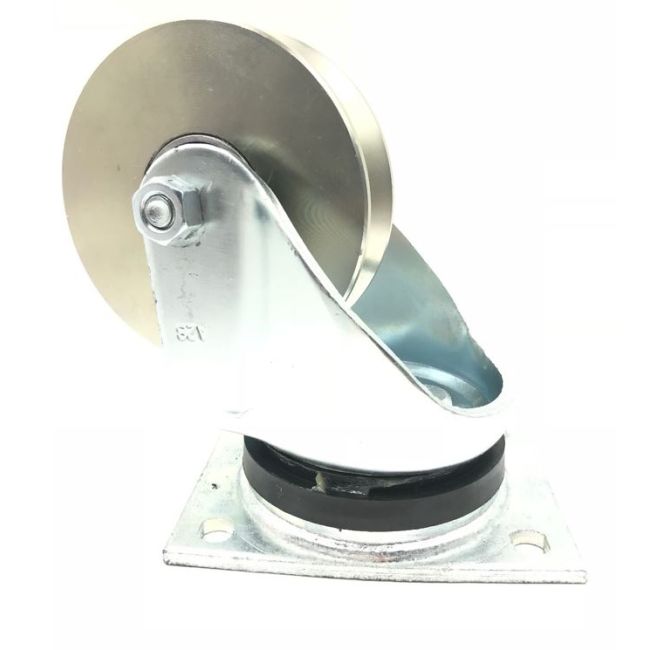

KBVD 600-1200 - Turning roller for 600-1200 kg loads - rotatable

The KBVD 600-1200 reversing roller is the perfect solution for cable winches and allows effortless redirection of loads in the 600-1200 kg range. Featuring a swivel mechanism for maximum flexibility and high quality ball bearings for smooth operation.

• Technical Specifications:
  • Load capacity: 600-1200 kg
  • Suitable for cables with a diameter of 8-18 mm (plastic, rope, shear cable or winch rope)
  • Compact base plate with dimensions 135 x 105 mm
  • Hole pattern 105 x 75 mm (slotted/slotted), 80 mm, Ø10.5 mm, 4x
  • Overall height: 168 mm
  • Wheel: 33 mm * 120 mm, V = 26 mm * 13 mm depth
  • Pivot point offset: 60 mm

The KBVD 600-1200 offers a simple and efficient way to divert loads. With high-quality ball bearings and a compact design, it is the ideal complement to cable winches.
