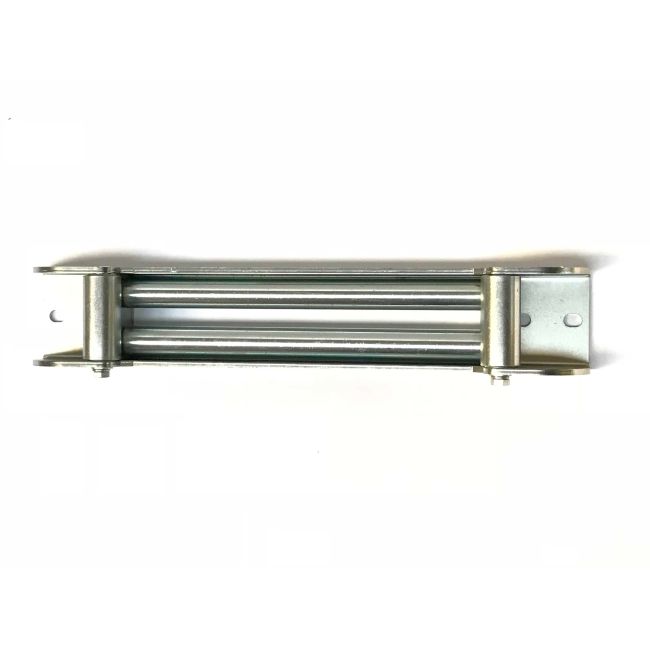

Rolling window RF CU 525 575x104 365x25

Roller window

Come up HV 20000 Type A12504YJ000 WA0513

Rolls in stainless steel / Rolls in stainless steel / Rolls in stainless steel ? NO

Mounting holes / Mounting holes :

1 = 525 (20'') mm 4 = 445 mm, diameter 10 = dia 13 x18 mm 2 + 2

Cable opening / Passage

2 = 365 mm 3 = 23 mm

Length - depth - height / length - width - height / length-width-height

5 = 575 mm 6 = 79 mm 7 = 104 (118 incl. grease)

Height of holes / Höhe der Löcher / hole height

8 = 52 mm

Diameter of the rollers / Rollen Durchmesser / diameter of the rollers

12 = 38 mm 13 = 38 mm
