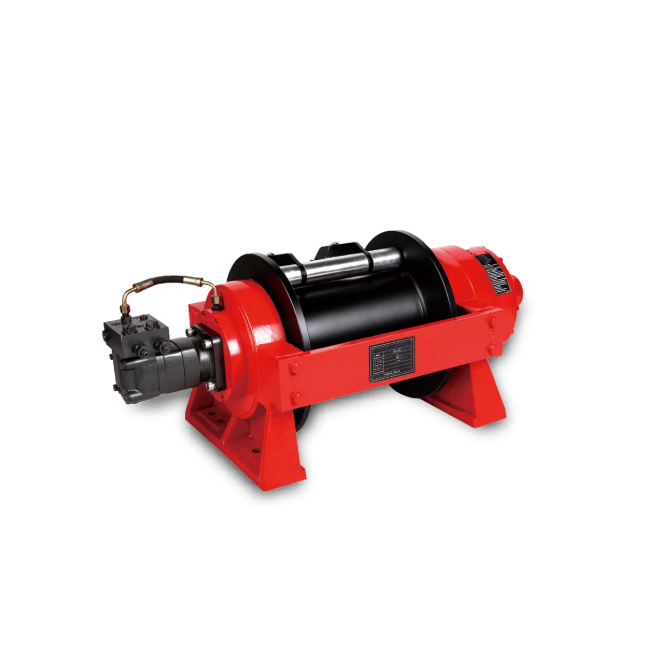

Designed to CE and EN standards, the HWE series offers reliable, powerful performance.
The wet hydraulic brake delivers high braking torque, long life and stable transmission. With a capacity of up to 20 tons, this series is suitable for a wide range of applications in engineering vehicles, tow trucks and recovery vehicles.

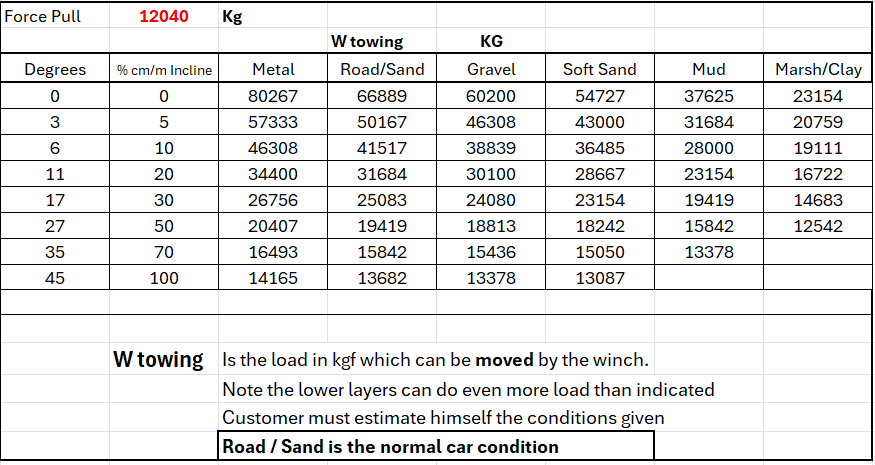

The table below shows what loads can be moved with this winch under what conditions, such as on sand, and still against what slope. This even takes into account the cable on the full drum. Then the force is less than on the lower layer of the drum.
You see with this winch you can move a 60 ton vehicle!
Designed to CE and EN standards, the HWE series offers reliable, powerful performance.
The wet hydraulic brake delivers high braking torque, long life and stable transmission. With a capacity of up to 20 tons, this series is suitable for a wide range of applications in engineering vehicles, tow trucks and recovery vehicles.
The table below shows what loads can be moved with this winch under what conditions, such as on sand, and still against what slope. This even takes into account the cable on the full drum. Then the force is less than on the lower layer of the drum.
| Rated line pull | 44000 lbs (20000 kgs) |
| Motor displacement: | 315ml/r |
| Oil flow: | 10~120L/min |
| Pressure | 20Mpa |
| Brake | Wet-type hydraulic brake |
| Geartrain: | 2-stage planetary alloy gear |
| Gear reducation ratio: | 36:1 |
| Waterproof: | IP67 |
| Cable(Dia×L): | Ø1.02″×131’(Ø26mm×40m) |
| Drum size(Dia×L): | Ø8.27″×13.39″(Ø210mm×340mm) |
| Mounting bolt pattern: | 20.94″×6.3″×11.02″(532mm×160mm×280mm)8-M24 |
| Net weight: | 380kg |

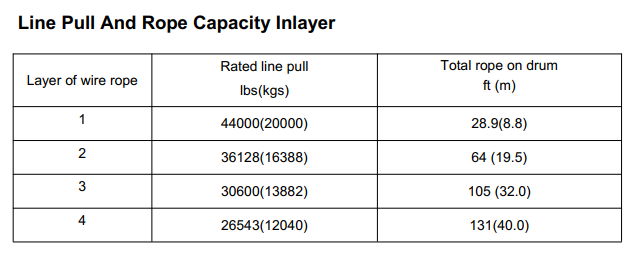

| PERFORMANCE SPECS (first layer) | ||||
| Line Pull | Pressure | Flow | Line Speed | Pull by layer: |
| Lbs.(kgs) | Mpa(Psi) | G/min. (L/min.) |
Ft/min. (M/min.) |
layer/Lbs.(kgs) |
| 0 | 7.5(1087.8) | 5.3(20) | 3.3(1.0) | 1/44000(20000) |
| 22000(10000) | 10(1450.4) | 13.2(50) | 8.9(2.7) | 2/36128(16388) |
| 33000(15000) | 15(2175.6) | 22.5(85) | 15.4(4.7) | 3/30600(13882) |
| 44000(20000) | 20(2900.8) | 31.7(120) | 23.0(7.0) | 4/26543(12040) |
| 33000 (15000) | 18(2610.7) | 33(125) | 27.9(8.5) | |
| EAN | 7439657035081 |
|---|---|
| Weight | 380.000000 |
| HS Code | 842531-00-90 |
| Applications | Cars and vehicles, Industry and workshops, Agriculture and forestry, Rescue services and assistance, Production lines and assembly, Shipbuilding and ports |
| Energy source | Hydraulic |
| Force | 8001-30000 |
| Speed (m/min) | 6-10 |
| Cable length (m) | 21-30 |
