Goldwinch GT 300 (kg) SY 24 VDC 14 m - Electric Lifting Winch - Radio Remote Control - Winch Rope - Security - IP 67
€411.40 €340.00

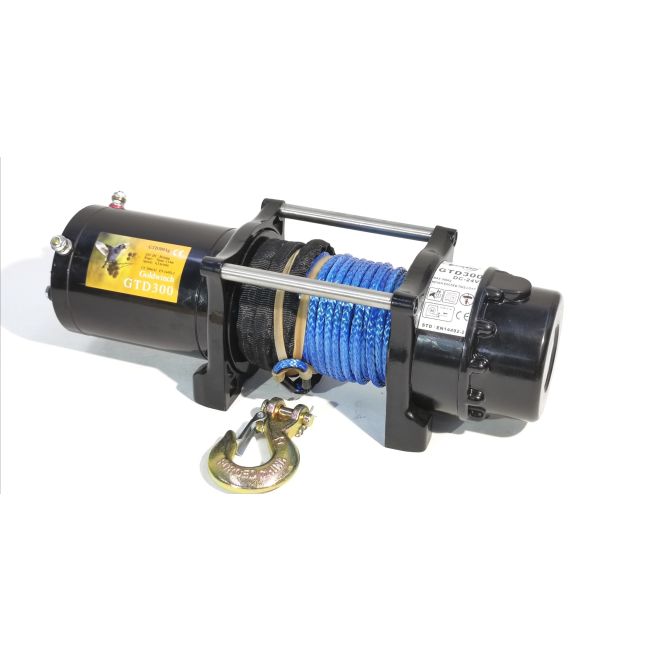

Professional electric hoist GT DC 300 SY 24 V for 12V and 24V direct current. With radio remote control, winch rope and overload protection. Safely and efficiently lift loads up to 300 kg.
SKU
1.L.1
EAN Number:
7439656970987
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
This GT DC 300 SY 24 V electric hoist is specially designed for professional hoisting with 12 V or 24 V direct current. It meets the highest safety standards according to EN 14492-2 with an impressive safety factor of more than 5 for the steel rope and more than 7 for the high-quality Synthetic rope.
The synthetic rope of this winch is particularly robust and performs better than a steel rope of the same thickness. The winch has a rotation-free steel rope, which keeps the load stable during lifting.
The winch is equipped with a radio remote control with a range of up to 40 meters. Two transmitters are included as standard, which is especially useful if a remote control is lost or the battery runs out.
In addition, the winch can also be operated manually with an emergency stop, with a cable length of 5 meters. Your load hangs securely even if the power goes out.
The hoisting force in the upper position on the drum is 300 kg. Keep in mind that the force on the layers below can be considerably higher.
The relay box is separate from the winch and allows the winch to be mounted anywhere. The winch is very compact and also suitable for use in small spaces.
The density class of this winch is almost at the highest level (IP 67), making it ideal for outdoor use.
|
Rated lifting capacity |
300 kg |
|
|
Permanent magnet motor |
12V: Input: 1.7kW / 2.3hp; Output: 0.9kW / 1.2hp 24V: Input: 2.8kW / 3.8hp; Output: 1.2kW / 1.6hp |
|
|
Gearbox reduction ratio |
172:1 |
|
|
Cable (diameter × L) |
Steel rope |
Synthetic rope |
|
Ø4.8mm×14m |
Ø5.0mm×14m |
|
|
Drum Size (Dia. × L) |
Ø63mm×122mm |
|
|
Pattern of fastening screws |
159mm×96mm 4-M8 |
|
|
Dimensions (L×W×H) |
391mm×126mm×128mm |
|
|
Position |
Lifting force |
Line speed m/min |
Current A |
||
|
|
kg |
12V |
24V |
12V |
24V |
|
1 |
400 |
3.7 |
3.9 |
40 |
25 |
|
2 |
350 |
3.9 |
4.1 |
42 |
28 |
|
3 |
300 |
4.2 |
4.3 |
45 |
30 |
|
Position |
Rated lifting force kg |
Total on drum (m) |
|
1 |
400 |
5.3 |
|
2 |
350 |
11.3 |
|
3 |
300 |
14.0 |
| EAN | 7439656970987 |
|---|---|
| Weight | 17.000000 |
| HS Code | 842531-00-90 |
| Energy source | 24 V |
| Force | 10-200 |
| Speed (m/min) | 6-10 |
