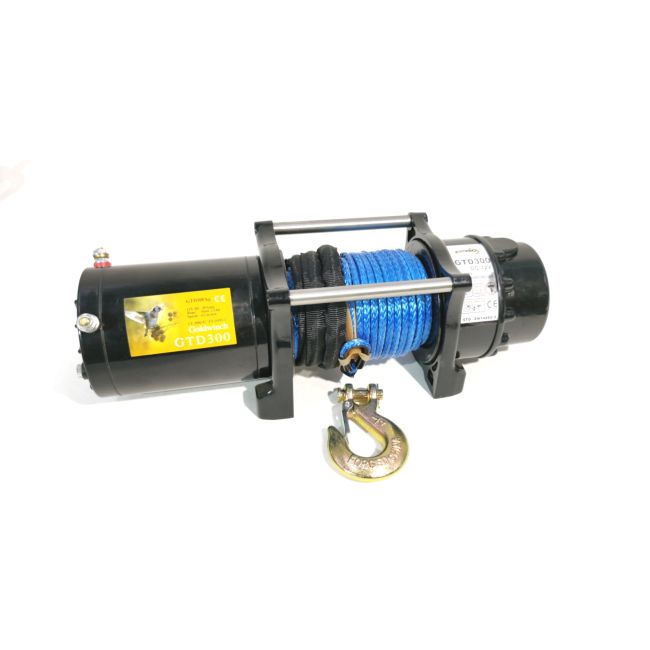

Goldwinch GT 300 (kg) SY 12 VDC 14 m - Electric Lifting Winch - Radio Remote Control - Winch Rope - Security - IP 67
€411.40 €340.00
The GT DC 300 SY electric hoist is specially designed for professional hoisting with 12V DC power. With a rated lifting capacity of 300 kg, synthetic rope and radio remote control, it is ideal for use on board, when loading materials and more.
SKU
1.K.1
EAN Number:
7439656970970
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The GT DC 300 SY electric lifting winch offers impressive performance for professional lifting operations with 12 V direct current. With a rated lifting capacity of 300 kg and a synthetic rope that complies with EN 14492-2 standards, this winch sets new standards in safety and reliability.
Technical specifications:
- Rated lifting capacity: 300 kg
- Motor: permanent magnet motor (12V: input 1.7kW/2.3hp, output 0.9kW/1.2hp; 24V: input 2.8kW/3.8hp, output 1.2kW/1.6hp)
- Gearbox reduction ratio: 172:1
- Rope: synthetic rope Ø5.0mm × 14m
- Drum size: Ø63mm × 122mm
- Mounting pattern: 159mm × 96mm 4-M8
- Dimensions: 391mm × 126mm × 128mm
- Remote control: Radio remote control, manual control with emergency stop, overload protection
Performance in different positions:
| Position | Rated lifting force kg | Line speed m/min | Amperage A (12V) | Amperage A (24V) |
|---|---|---|---|---|
| 1 | 400 | 3.7 (12V) / 3.9 (24V) | 40 | 25 |
| 2 | 350 | 3.9 (12V) / 4.1 (24V) | 42 | 28 |
| 3 | 300 | 4.2 (12V) / 4.3 (24V) | 45 | 30 |
Lifting force and drum capacity:
| Position | Rated lifting force kg | Total on drum m |
|---|---|---|
| 1 | 400 | 5,3 |
| 2 | 350 | 11,3 |
| 3 | 300 | 14,0 |
This winch is characterized by a rotation-free steel cable, which keeps the load cleanly under the winch. The overload is measured by amperage and the winch is equipped with an automatic switch.
The radio remote control has a range of up to 40 meters, and the DC winch can also be operated manually with an emergency stop. With a density rating of IP 67, this winch is also suitable for outdoor use.
The relay box is separate from the winch and offers flexible mounting options. This compact and powerful electric hoist is perfect for applications where direct current is available.
Note: The specified force refers to the top layer on the drum, meaning the force on the layers below is higher.
|
Rated lifting force |
300 kg |
|
|
Permanent magnet motor |
12V: Input: 1.7kW / 2.3hp; Output: 0.9kW / 1.2hp 24V: Input: 2.8kW / 3.8hp; Output: 1.2kW / 1.6hp |
|
|
Gearbox reduction ratio |
172:1 |
|
|
Cable (diameter × L) |
Steel rope |
Synthetic rope |
|
Ø4.8mm×14m |
Ø5.0mm×14m |
|
|
Drum Size (Dia. × L) |
Ø63mm×122mm |
|
|
Pattern of fastening screws |
159mm×96mm 4-M8 |
|
|
Dimensions (L×W×H) |
391mm×126mm×128mm |
|
|
Position |
Lifting force |
Line speed m/min |
Current A |
||
|
|
kg |
12V |
24V |
12V |
24V |
|
1 |
400 |
3.7 |
3.9 |
40 |
25 |
|
2 |
350 |
3.9 |
4.1 |
42 |
28 |
|
3 |
300 |
4.2 |
4.3 |
45 |
30 |
|
Position |
Rated lifting force kg |
Total on drum (m) |
|
1 |
400 |
5.3 |
|
2 |
350 |
11.3 |
|
3 |
300 |
14.0 |
| EAN | 7439656970970 |
|---|---|
| Weight | 17.000000 |
| HS Code | 842531-00-90 |
| Energy source | 12 V |
| Force | 10-200 |
| Speed (m/min) | 6-10 |
