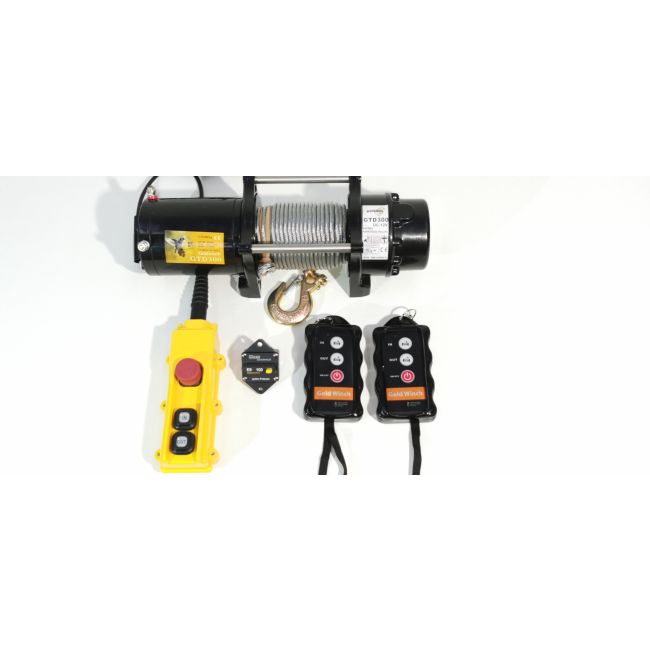

Goldwinch GT 300 (kg) ST 12 VDC 14 m - Electric Hoist - Radiographic Remote Control - Twist-free Steel Wire Rope - Security - IP 67
€360.58 €298.00
Professional 12V DC hoisting winch with a rated lifting capacity of 300 kg. Includes radio remote control and rotation-free steel cable for safe and accurate lifting. Ideal for marine anchors, pipes and heavy loads.
SKU
1.M.1
EAN Number:
7439656970956
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The GT DC 300 ST electric hoist has an impressive rated lifting capacity of 300 kg, perfect for professional lifting with 12V DC power. A remote control, hand control with emergency stop and overload protection are included.
The winch has a rotation-free steel cable that allows safe and stable lifting without the load spinning uncontrollably. The radio remote control and integrated hand control ensure precise operation in any situation.
Special attention has been paid to overload protection, which keeps the load in the optimum range by continuously measuring the current strength. In case of overload, an automatic switch protects the winch and then turns it back on.
The versatile hoist is perfect for lifting marine anchors, pipes and other heavy materials. It can also be used to load goods into cars or onto ships with ease.
The synthetic cable is lighter and stronger than conventional steel cable, perfect for demanding tasks. The IP67 certification guarantees maximum impermeability and protection from external influences even in adverse conditions.
The strength specification relates to the top layer on the drum to ensure constant lifting force. Separate mounting of the relay box with long power cables allows flexible positioning and saves space.
Technical Specifications:
- Rated lifting capacity: 300 kg
- Permanent magnet motor: 12V: input 1.7 kW / 2.3 hp; output 0.9 kW / 1.2 hp | 24V: input 2.8 kW / 3.8 hp; output 1.2 kW / 1.6 hp
- Gearbox reduction ratio: 172:1
- Cable (Dia. × L): Steel rope Ø4.8mm×14m | Synthetic rope Ø5.0mm×14m
- Drum size (Dia. × L): Ø63mm×122mm
- Dimensions (L×W×H): 391mm×126mm×128mm
| Position | Lifting force | Line speed m/min | Current A |
|---|---|---|---|
| 1 | 400 kg | 3.7 (12V) / 3.9 (24V) | 40 (12V) / 25 (24V) |
| 2 | 350 kg | 3.9 (12V) / 4.1 (24V) | 42 (12V) / 28 (24V) |
| 3 | 300 kg | 4.2 (12V) / 4.3 (24V) | 45 (12V) / 30 (24V) |
| Position | Rated lifting force kg | Total on drum (m) |
|---|---|---|
| 1 | 400 kg | 5,3 |
| 2 | 350 kg | 11,3 |
| 3 | 300 kg | 14,0 |
Warranty:
Please refer to our warranty conditions on our website.
Remark:
Use the product according to the instructions in the user manual.
|
Rated lifting capacity |
300 kg |
|
|
Permanent magnet motor |
12V: Input: 1.7kW / 2.3hp; Output: 0.9kW / 1.2hp 24V: Input: 2.8kW / 3.8hp; Output: 1.2kW / 1.6hp |
|
|
Gearbox reduction ratio |
172:1 |
|
|
Cable (diameter × L) |
Steel rope |
Synthetic rope |
|
Ø4.8mm×14m |
Ø5.0mm×14m |
|
|
Drum Size (Dia. × L) |
Ø63mm×122mm |
|
|
Pattern of fastening screws |
159mm×96mm 4-M8 |
|
|
Dimensions (L×W×H) |
391mm×126mm×128mm |
|
|
Position |
Lifting force |
Line speed m/min |
Current A |
||
|
|
kg |
12V |
24V |
12V |
24V |
|
1 |
400 |
3.7 |
3.9 |
40 |
25 |
|
2 |
350 |
3.9 |
4.1 |
42 |
28 |
|
3 |
300 |
4.2 |
4.3 |
45 |
30 |
|
Position |
Rated lifting force kg |
Total on drum (m) |
|
1 |
400 |
5.3 |
|
2 |
350 |
11.3 |
|
3 |
300 |
14.0 |
| EAN | 7439656970956 |
|---|---|
| Weight | 18.000000 |
| HS Code | 842531-00-90 |
| Energy source | 12 V |
| Force | 10-200 |
| Speed (m/min) | 6-10 |
