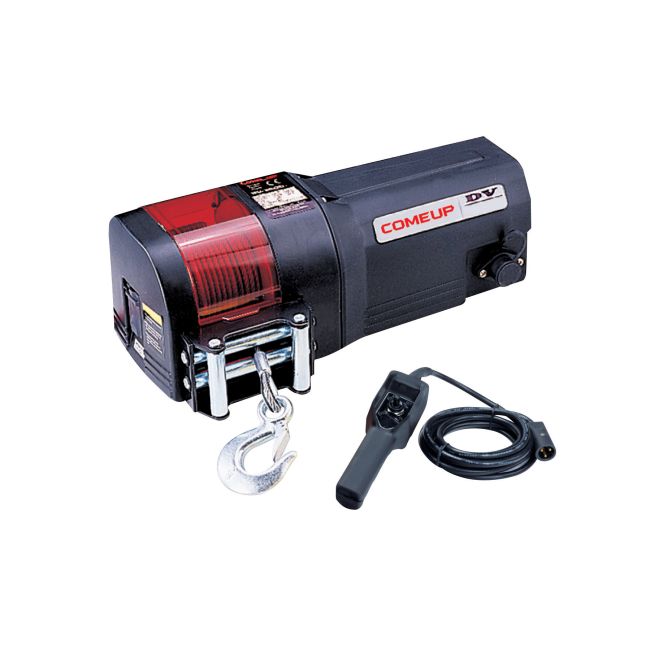

ComeUp DV 4500i 24 Volt Winch
€713.90 €590.00
The ComeUp DV 4500i is a powerful 24-volt Winch with a capacity of up to 2,041 kg (4,500 lb). With its rugged design and wide range of features, it is ideal for a variety of applications, both in vehicles and on boat trailers.
SKU
1.S.2.a
EAN Number:
7439657036095
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The ComeUp DV 4500i Winch offers impressive performance and reliability for your lifting needs. With a 1,200-watt permanent magnet motor and a 3-stage planetary gearbox with a 170:1 ratio, it can handle demanding tasks with ease.
Technical data and features:
- Lifting force: 2,041 kg / 4,500 lb
- Motor: 1,200 W / 1.6 hp permanent magnet
- Gearbox: 3-stage planetary gearbox
- Gear ratio: 170:1
- Clearance: sliding ramp mechanism
- Brake: Mechanical
- Rope: 6.2 mm × 15.2 m (1/4" × 50') galvanized aircraft rope A7 x 19
- Drum size: 54 mm x 83 mm (2.1" x 3.3")
- Bolt pattern mounting: 86 mm x 93 mm (3.39" x 3.66")
- On/off switch, freewheel switch for quick rope payout, overload switch for motor protection, weatherproof plastic housing for long life, dynamic and mechanical brake for full load, integrated magnetic coil for wiring protection.
Scope of delivery:
- Steel cable with hook WA-0605
- Remote control unit WA-0305
- 1.5 m (5') battery cable
- Pulley WA-0501
- Fuses
- Hand protection harness
Optional accessories:
- Reversing roller WA-0402
Package Contents:
- Winch Weight: 14.2 kg / 31.2 lb
- Gross weight: 18.2 kg / 40 lb
- Box dimensions: 475 × 279 × 179 mm (18.7" × 11" × 7")
ComeUp DV 4500i - your reliable solution for demanding lifting applications.
TENSILE STRENGTH AND CABLE CAPACITY
| Low steel wire rope | Cable pull, kg/lb | Total cable on drum, m / ft | ||
| 1e | 2,041 / 4,500 | 2.4 / 8 | ||
| 2e | 1,685 / 3,714 | 5.3 / 17.4 | ||
| 3e | 1,433 / 3,159 | 8.6 / 28.1 | ||
| 4e | 1,247 / 2,750 | 12.5 / 41 | ||
| 5e | 1,104 / 2,435 | 15.2 / 50 |
LINE SPEED AND AMP. TIGHT ( 1st layer of rope on the drum)
| Traction force, kg / lb | Line speed, mpm / fpm | Amp. Traction force, 12V | Amp. Traction force, 24V | |
| No load | 6.5 / 21.3 | 25 | 10 | |
| 454 / 1,000 | 5.0 / 16.4 | 110 | 55 | |
| 907/ 2,000 | 3.6 / 11.8 | 210 | 95 | |
| 1,134 / 2,500 | 3.2 / 10.5 | 240 | 110 | |
| 1,361 / 3,000 | 2.5 / 8.2 | 270 | 120 | |
| 1,588 / 3,500 | 1.8 / 5.9 | 290 | 140 | |
| 1,814 / 4,000 | 1.4 / 4.6 | 310 | 155 | |
| 2,041 / 4,500 | 0.4 / 1.3 | 330 | 170 |
WARNING
This Winch should not be used to lift or move people.
WARRANTY
Each new Winch is warranted against defects in workmanship and materials for a period of twelve months from the date of purchase. Ropes are excluded from the warranty.
| EAN | 7439657036095 |
|---|---|
| Weight | 16.000000 |
| HS Code | 842531-00-90 |
| Energy source | 24 V |
| Speed (m/min) | 6-10 |
