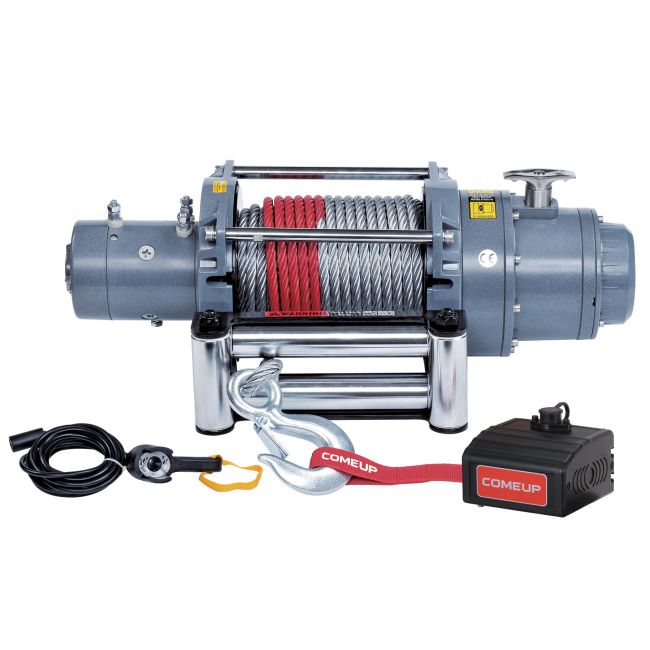

ComeUp DV 15 ES 12 Volt / 6800 kg Winch
€1,597.14 €1,319.95
The ComeUp DV 15 ES Winch is a powerful machine designed for demanding tasks. With a tensile force of 6,804 kg in single pull and a 4,180 W / 5.6 hp motor, it offers impressive performance. The waterproof remote control with thermometric LED indicator and 5 m cable allows easy operation. The Winch is ideal for use in harsh conditions.
SKU
1.R.4.b
EAN Number:
7439657037061
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
Detailed description and technical data:
- Motor: 4,180 W / 5.6 HP 12V series
- Drum dimensions: 89 x 206 mm (3.5" x 8.1")
- Control: Waterproof remote control with thermometric LED indicator and 5 m cable
- Cable thickness: 11.1 mm x 27 m (7/16" x 89')
- Mounting pattern of the bolts: 254 x 165mm
- Winch weight (including rope): 57 kg
- Gross weight: 69 kg
- Box dimensions (L x D x H): 695 x 265 x 420 mm
Features:
- Sealed high performance motor delivers superior torque performance and faster rope speed.
- The 3-stage planetary gearbox ensures the most reliable and durable performance of the Winch in harsh conditions.
- The patented automatic CBS (bevel brake structure) holds up even under full load and allows for easy maintenance.
- The heavily sealed contactor provides reliable waterproof protection.
- Ergonomic T-handle allows quick rope deployment.
- Protective thermal sensor with LED display.
Technical Data:
- Item number: PN 857326 (12V)
- Pulling force: 6,804 kg in single pull
- Gearbox: 3-stage planetary transmission 315:1
- Clutch (freewheel): Rotary gear
- Brake (outside drum): Automatic, full-load CBS (cone brake structure)
- Winch construction: cast aluminum housing with steel drum
- Cable type: 6 × 29 - IWRC
- Cable thickness: 11.1 mm x 27 m (7/16" x 89')
- Bolt attachment pattern: 254 x 114 mm or 254 x 165 mm
- Winch weight (including rope): 57 kg
- Gross weight: 69 kg
- Box dimensions (L x D x H): 695 x 265 x 420 mm
Scope of delivery:
- Removable control box
- Remote control with 5 m cable
- Rope pulley
- Cable with safety hook
- 1.8 m (6') 2 gauge battery cable
- Hand protection strap
Line speed and Amp. Traction force (1st layer of wire rope on drum):
|
Line pull force
kg / lb |
Line speed,
mpm / fpm |
Amp. Traction force, A
|
|
|
12V
|
24V | ||
|
No load
|
6.9 / 22
|
60
|
50 |
|
1,814 / 4,000
|
1.6 / 5.4
|
180
|
90 |
|
3,629 / 8,000
|
1.2 / 3.8
|
280
|
190 |
|
4,536 / 10,000
|
1 / 3.3
|
330
|
220 |
|
5,443 / 12,000
|
0.9 / 2.9
|
385
|
260 |
|
6,804 / 15,000
|
0.8 / 2.5
|
460
|
340 |
Rope pull and rope capacity:
|
Layer rope
|
Tensile strength per layer, kg / lb
|
Total rope on the drum, m / ft
|
|
1e
|
6,804 / 15,000
|
5.7 / 18.6
|
|
2e
|
5,569 / 12,277
|
12.6 / 41.4
|
|
3e
|
4,713 / 10,391
|
20.8 / 68.3
|
|
4e
|
4,086 / 9,007
|
27 / 89
|
Accessories:
| Standard Accessories | Option Accessories |
|
|
Note:
Please note that this Winch is not intended to lift or move people.
Warranty:
Each new Winch is warranted against defects in materials and workmanship for a specified period from the date of purchase. Mechanical parts have a limited lifetime warranty, electrical parts have a one-year warranty. Ropes are excluded from the warranty.
| EAN | 7439657037061 |
|---|---|
| Weight | 56.000000 |
| HS Code | 842531-00-90 |
| Energy source | 12 V |
| Speed (m/min) | 0-5 |
