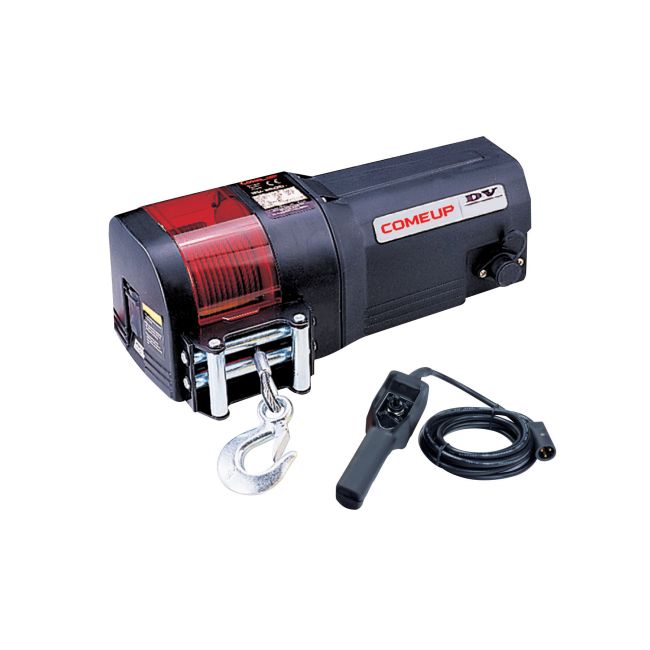

ComeUp DV 4500i 12 Volt Winch
€689.70 €570.00
The ComeUp DV 4500i 12-volt Winch is a powerful solution for a wide range of applications on trailers and boats. With a towing capacity of 2,041 kg and a robust 1,200 W / 1.6 hp permanent magnet motor, it is ideally equipped to tackle even the most demanding tasks.
SKU
1.T.2
EAN Number:
7439657039034
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
ComeUp DV 4500i Winch
The ComeUp DV 4500i Winch is equipped with a triple planetary gearbox and has a gear ratio of 170:1. Thanks to the slip-free freewheel and mechanical brake, operation is easy and safe. The Aircraft A7 x 19 steel cable of 6.2 mm × 15.2 m ensures reliable performance.
Features:
- On/off switch
- Freewheel switch for easy rope uncoiling
- Overload switch - automatically shuts off to protect motor from overheating
- Waterproof plastic housing for extra long life
- Dynamic and mechanical brake - stops under full load
- Integrated magnetic coil for full protection of wiring
- Compact and lightweight for a wide range of applications
Specification/part number:
- Traction force: 2,041 kg / 4,500 lb
- Motor: 1,200 W / 1.6 hp permanent magnet
- Gearbox type: 3-fold planetary gearbox
- Gear ratio: 170:1
- Freewheel: slip
- Brake: mechanical
- Rope dimensions: 6.2 mm × 15.2 m (1/4" × 50')
- Rope type: galvanized steel cable type aircraft A7 x 19
- Drum dimensions: 54 mm × 83 mm (2.1" × 3.3")
- Hole pattern for attachment: 86 mm x 93 mm (3.39" x 3.66")
Traction force and rope capacity:
| Position | Pull force, kg / lb | Total rope on drum, m / ft |
|---|---|---|
| 1st layer | 2.041 / 4.500 | 2.4 / 8 |
Line speed and Amp. Pull force (1st layer of rope on drum):
| Pull force, kg / lb | Speed, mpm / fpm | Amp. Pull force, 12V | Amp. Pull, 24V |
|---|---|---|---|
| Without load | 6,5 / 21,3 | 25 | 10 |
Warning:
This winch is not permitted for passenger transport.
Warranty:
Each new winch has a 12-month warranty from the date of purchase. Steel cables are not covered by the warranty.
Standard Accessories:
- Steel cable with hook WA-0605
- Hand control WA-0305
- 1.5m (5') battery connection cable
- Roller window WA-0501
- Overload switch
- Hand protection belt
Optional accessories:
- Pulley WA-0402
Packaging and weight:
- Net weight of the winch: 14.2 kg / 31.2 lb
- Gross weight including packaging: 18.2 kg / 40 lb
- Packaging dimensions: 475 × 279 × 179 mm (18.7" × 11" × 7")
TENSILE STRENGTH AND ROPE CAPACITY
| Rope layers on the drum | Tensile strength, kg / lb | Total rope on the drum, m | ||
| 1st layer | 2,041 / 4,500 | 2.4 / 8 | ||
| 2nd layer | 1,685 / 3,714 | 5.3 / 17.4 | ||
| 3rd layer | 1,433 / 3,159 | 8.6 / 28.1 | ||
| 4th layer | 1,247 / 2,750 | 12.5 / 41 | ||
| 5th layer | 1,104 / 2,435 | 15.2 / 50 |
LINE SPEED AND AMP. TREK ( 1st layer of rope on the drum)
| Traction force, kg / lb | Speed, mpm / fpm | Amp. Pull, 12V | Amp. Draw, 24V | |
| No load | 6.5 / 21.3 | 25 | 10 | |
| 454 / 1,000 | 5.0 / 16.4 | 110 | 55 | |
| 907/ 2,000 | 3.6 / 11.8 | 210 | 95 | |
| 1,134 / 2,500 | 3.2 / 10.5 | 240 | 110 | |
| 1,361 / 3,000 | 2.5 / 8.2 | 270 | 120 | |
| 1,588 / 3,500 | 1.8 / 5.9 | 290 | 140 | |
| 1,814 / 4,000 | 1.4 / 4.6 | 310 | 155 | |
| 2,041 / 4,500 | 0.4 / 1.3 | 330 | 170 |
| EAN | 7439657039034 |
|---|---|
| Weight | 14.000000 |
| HS Code | 842531-00-90 |
| Energy source | 12 V |
| Speed (m/min) | 0-5 |
