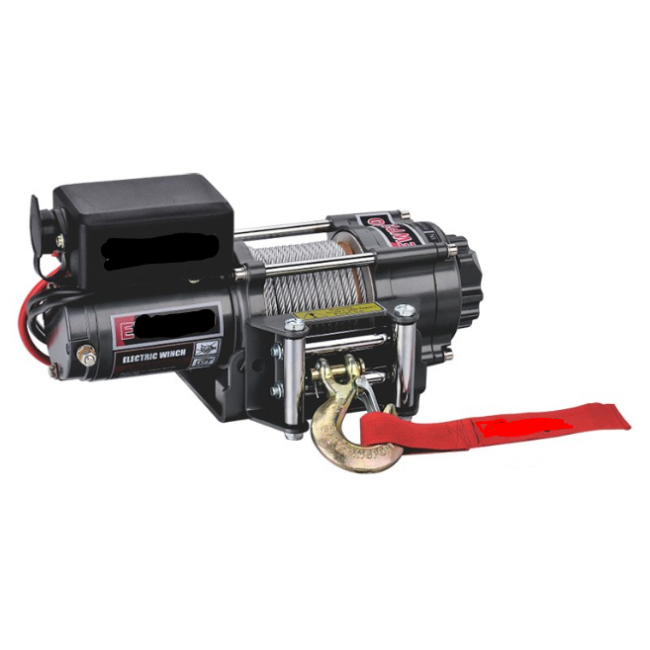

Runva 1500 kg 12 Volt Winch Steel Cable and additional Radiograph with 2 transmitters
The permanent magnet moto for 12V or 24V offer impressive performance. Its robust design and versatile application options make it the ideal choice for a variety of tasks.
- Powerful traction force of 1588 kg (3500 lbs)
- Permanent magnet motor for 12V or 24V
- Reduction ratio of 170:1 for optimal performance
- High quality steel cable (Ø 7/32"×42.0") and compact drum (Ø 1.46"×3.15")
- Robust design with a light weight of 10 kg
- Versatile applications and easy to mount with two bolts (79.5 mm 2-M8)
SKU
5.H.1
EAN Number:
7439657011009
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
Runva 1500 kg 12 Volt Winch Steel Cable and additional Radiograph with 2 transmitters
is the perfect solution for demanding pulling tasks. The successor to the proven C 3500 (LBS) EWX series, it offers an impressive pulling force of 3500 lbs (1588 kg), setting new standards in performance and reliability.
The permanent magnet motor is available in 12V and 24V options, making it flexible for use in different environments. Input power ranges between 2.4 kW / 3.2 hp and 2.9 kW / 3.9 hp, with corresponding output powers of 1.0 kW / 1.3 hp and 1.2 kW / 1.6 hp.
With an impressive reduction ratio of 170:1, this Winch offers optimum performance in a variety of applications. The cable with Ø 7/32" diameter and a length of 42.0' guarantees reliability and durability.
Drum size Ø 1.46" × 3.15" and 2-M8 mounting pattern of 3.13" (79.5 mm) make installation easy and efficient. Its overall dimensions of 13.7"×4.6"×6.5" and low weight of 10.0 kg make it easy to transport and handle.
The Goldwinch 1500 kg EW 12 volt Winch impresses with its performance and reliability, whether you use it for off-road adventures, commercial vehicles or other applications. Invest in quality and rely on Goldwinch's proven technology.
| SPECIFICATION | |||
| Rated towing capacity |
1588 kg |
||
|
Motor: |
12V: Input: 2.4 kW / 3.2 hp; Output: 1.0 kW / 1.3 hp |
||
|
Gear ratio |
170:1 |
||
|
Cable (Dia.× L) |
Ø 7/32"×42.0" (Ø 5.4mm×12.8m) |
||
|
Drum Size (Dia.×L) |
Ø 1.46"×3.15" (Ø 37mm×80mm) |
||
|
Mounting pattern |
79.5mm (3.13") 2-M8 |
||
|
|
|
|
|
|
Overall dimensions |
|
|
13.7"×4.6"×6.5" |
|
Net weight/ lbs (kg) |
|
|
22.0/ 10.0 |
| Pull force, speed, amperes, volts (first layer): | ||||
| Line Pull Force |
Line speed ft/min(m/min) |
Current A |
||
|
Ibs (kg) |
12V DC |
24V DC |
12V DC |
24V DC |
|
0 |
10.5(3.2) |
10.5(3.2) |
20 |
16 |
|
1000(454) |
8.9(2.7) |
9.5(2.9) |
75 |
40 |
|
2000(907) |
7.5(2.3) |
8.9(2.7) |
130 |
75 |
|
3500(1588) |
4.6(1.4) |
7.5(2.3) |
200 |
120 |
| Cable pull and cable capacity in layer | ||
| Lay of wire rope |
Nominal line pull lbs (kgs) |
Total cable on the drun ft (m) |
|
1 |
3500(1588) |
5.9(1.8) |
|
2 |
2789(1265) |
13.5(4.1) |
|
3 |
2319(1052) |
22.0(6.7) |
|
4 |
1984 (900) |
31.2(9.5) |
|
5 |
1733 (786) |
42.0(12.8) |
| Winch Dimensions: |
|
|
| EAN | 7439657011009 |
|---|---|
| Weight | 9.000000 |
| HS Code | 842531-00-90 |
| Applications | Cars and vehicles, Boat trailers and water sports, Caravans and campers |
| Type of winch or parts | Pull winch: Cut load stands still or slides |
| Energy source | 12 V |
| Force | 501-2500 |
| Speed (m/min) | 6-10 |
| Cable length (m) | 11-20 |
