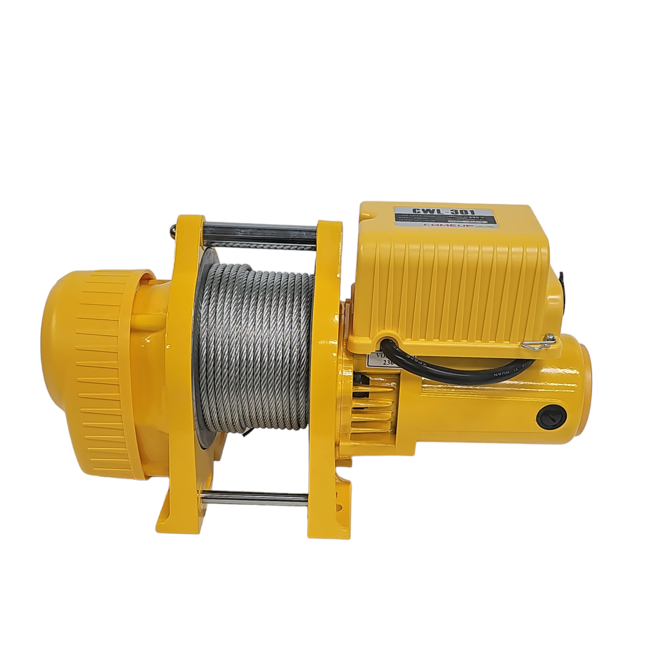

ComeUp CWL 301 (kg) 230V 30 m - Electric Lifting Winch

ComeUp CWL 301 (kg) 230V 30 m - Electric Lifting Winch

The CWL 301 Winch offers excellent performance and reliability for demanding lifting tasks. With a lifting speed of 16-25 m/min and a maximum lifting height of 29 m, it performs a wide range of tasks with ease. The powerful 2.3 kW x 11 A motor with 110:1 gear ratio ensures efficient performance.

Options:

Optional at extra cost is aradio remote control: the TELEPP CP7. A speed control can also be purchased in addition. That speed control is installed in the voltage supply.

Technical specifications:

• Lifting force300 kg on the upper layer
• Lifting speed: 16 - 25 m/min
• Classification motor IP44: 1 phase, 220-240 V, 2.3 kW x 11 A (series motor)
• Gear ratio: 110:1
• Maximum lifting height: 29 m
• Steel wire rope: 6 mm x 30 m
• Mounting pattern: 142 mm x 94 mm; 152 mm x 135 mm
• Net weight (standard version): 38 kg

Special features:

• Lightweight and compact design for easy installation
• Dynamic and mechanical brake for instant and safe braking
• Operates on conventional household mains power
• Supplied complete with steel cable and hook
• Closed drum cover prevents cable entrapment between drum and carrier body
• Includes 10 m crank control
• IP44 motor rating
• Robust IP65 waterproof switch with PB-316 emergency stop as option

Warning: Winches should not be used to move people.

Warranty: Each new Winch is guaranteed against manufacturing and material defects for a period of twelve months from the date of purchase.

Standard Accessories:

• 6 mm x 30 m steel cable.
• Weight hook CHW-0031
• Pendulum switch CPB-313
• Switching cable 2 mm² x 6C x 10 m

Optional accessories:

• Remote control PB-316 Assembly

Packing:

• Winch Weight: 38 kg
• Gross weight: 40 kg
• Dimensions: 630 × 395 × 350 mm

Note: Avoid slack rope and crooked hoisting. Carefully wind the rope before hoisting again to avoid damage to the winch motor.

SPECIFICATION

1. All ratings are based on the top layer. For each layer reduction on the drum, the draw-in capacity is increased by 10%.
2. use a gripping block for double line use, to increase line pull by about 85%.

TRAwlABILITY FOR DIFFERENT INFLUENCE in KG

STANDARD ACCESSORIES
6 mm x 30 m wire rope
Weight hook CHW-0031
Pendulum switch CPB-313
Switch cable 2 mm2 x 6C X 10 m

OPTIONAL ACCESSORIES
Remote control PB-316 mounting

PACKAGE
Winch Weight: 38 kg
Gross weight: 40 kg
Box dimensions: 630 × 395 × 350 mm

Avoid slack rope and hoisting at an angle. This will cause the rope to become tangled. Wind the rope well before hoisting again. Never use the winch itself to hoist the rope when it is twisted. This will damage the winch motor.

Warning

• Never drive the winch directly up and then down again (dragging). Or raise or lower it short distances in succession (inching). Give it time!
• Avoid slack rope and hoisting at an angle. This causes the rope to tangle. Wind the rope well before hoisting again.
• Never use the winch to hoist the rope itself when it is twisted. This will damage the winch motor.
