ComeUp CP 500 (kg) 230V 60 m - Electric Lifting Winch

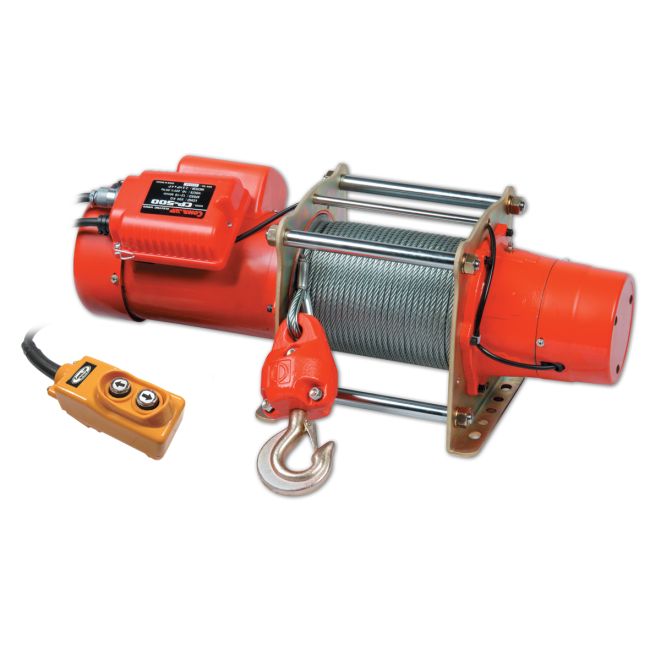

The ComeUp CP 500 (kg) 230 V Winch is a powerful lifting device with an impressive lifting capacity of 500 kg on the top rope layer. With a lifting speed of 10-15 m/min and a robust 1.8 kW motor, it can be used for a wide range of applications. The Winch has an electromagnetic braking method for maximum safety. The 7 mm x 60 m rope ensures reliable performance. Its lightweight and compact design makes it easy to install. A remote control option is also available.

Lifting capacity, lifting speed and rope capacity:

Low steel rope	Lifting capacity, kg	Lifting speed, m/min	Total cable on drum, m
1e	757	10	10
2e	671	11.6	22
3e	602	12.9	35
4e	546	14.2	50
5e	500	15	60

Note: The above performance values are based on 50Hz power supply.

Traction force for different slope angles in kg

Model	Horizontal	Slope % slopes / angle in degrees
		10% 60°	20% 11°	40% 25°	60% 31°	80% 39°
CP-500	3,700	2,000	1,500	1,000	800	700

Note:
1. All ratings are based on the top layer. For each layer reduction on the drum, the line pull is increased by 10%.
2. use a gripping block for dual line use to increase line pull by approximately 85%.
3. the pulling capacities are based on a pulling force and 15% friction has been taken into account (specific applications may vary).

Warning
The Winch is not intended for moving or lifting persons.
The rated lifting capacity shown is based on the top rope wrap on the drum.
The rope wrap on the drum must remain 5 wraps from the drum

Accessories:

Standard Accessories.
Steel cable 7 mm x 60 m Weight hook, CHW-0005 Remote control, PB-331 - Switching cable 3.5 mm2 x 5C x 6 m - Pendulum switch PB-331 with emergency stop button
