ComeUp CWL 301L 230V 300 kg 60 m - Electric Lifting Winch

ComeUp CWL 301L 230V 300 kg 60 m - Electric Lifting Winch

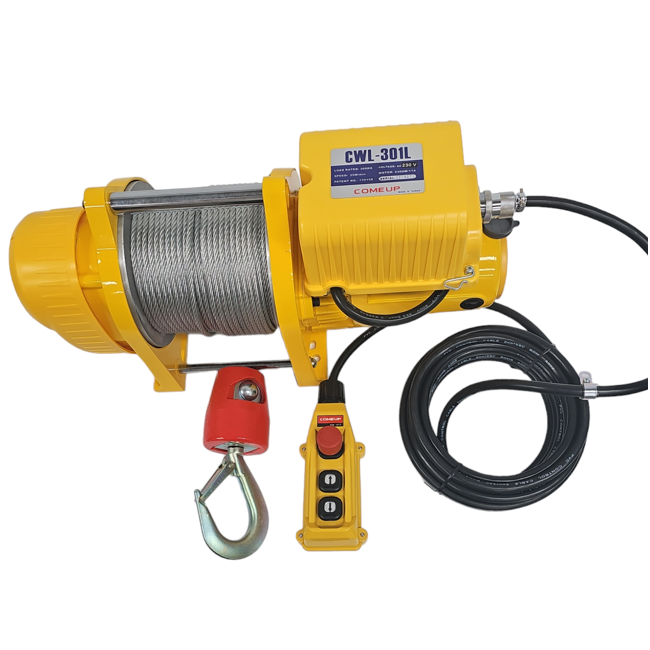

The CWL 301 L 230V 60 m x 6 mm 300 kg Lifting Winch is the ideal solution for versatile lifting requirements. With a lifting force of 300 kg on the top rope layer, it offers an impressive lifting speed of 16 to 25 m/min. The 2.3 kW single-phase motor with 220-240V operating voltage ensures reliable performance.

Options:

Optional at extra cost is aradio remote control: the TELEPP CP7. A speed control can also be purchased as an optional extra. That speed control is installed in the voltage supply.

Technical specifications:

• Lifting force300 kg on the top rope layer.
• Motor designation IP44Heavy IP65 waterproof switch with emergency stop PB-316 as an option
• Lifting speed: 16 - 25 m/min
• Motor class IP44: 1 phase, 220-240 V, 2.3 kW x 11 A, series winding
• Gear ratio: 110:1
• Maximum lifting height: 58 m
• Steel wire rope: 6 mm x 60 m
• Net weight (standard version): 40 kg

Features:

• Lightweight and compact design for easy installation
• Dynamic and mechanical brakes for immediate and safe braking
• Operates on standard household power supply
• Steel cable with secure safety hook
• Closed drum flange prevents cables from getting caught between drum and support bearing
• IP44 motor rating
• IP65 waterproof switch with PB-316 emergency stop function as an option

Performance and Capacity:

Application:

The Winch should not be used to move people.

Warranty:

Each new Winch is warranted against defects in material and workmanship for a period of twelve months from the date of purchase. Ropes are excluded from the warranty.

Standard Accessories:

• Steel cable, 6 mm x 60 m
• Weight hook CHW-0031
• Trailer switch CPB-313
• Switch cable 2 mm x 6C x 10 m

Optional accessories:

• Remote control PB-316 Mounting (switch with emergency stop).
