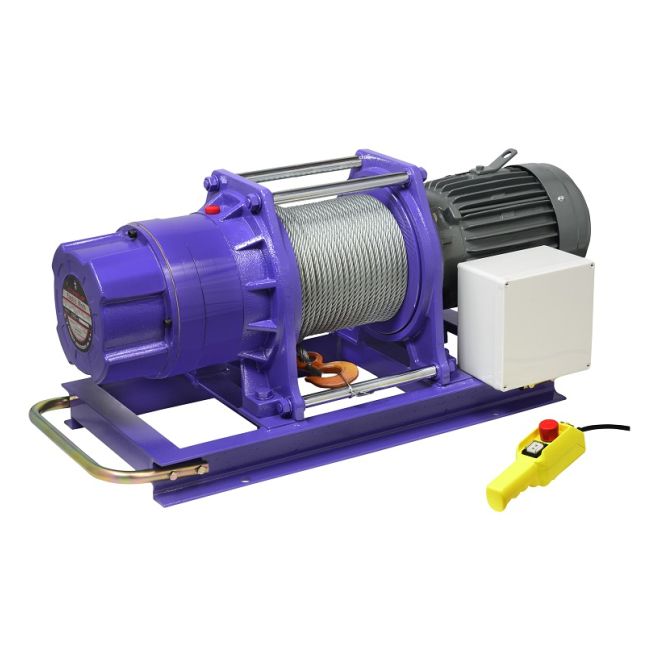

ComeUp CWG 30375 900 (kg) 400V - Electric winch

Technical Specifications:

• Load capacity: 900 kg on the upper cable layer


• Lifting speed:




• Option A: 13 - 20.6 m/min




• Power supply: 3 phase, 380-440 V


• Motor class IP54:




• Option A: 3.8 kW x 4-pole induction brake motor


• Option B: 2.2 kW x 6-pole induction brake motor




• Gear ratio: 48:1


• Maximum lifting height: 58 m


• Braking methods: Electromagnetic


• Steel cable: 10 mm x 60 m


• Drum length: 230 mm


• Drum diameter: 127 mm


• Drum flange diameter: 275 mm


• Bolt pattern mounting: 500 mm x 370 mm


• Net weight (standard version): 185 kg


• Gross weight: 225 kg


• Housing dimensions (L x D x H): 974 x 400 x 445 mm


• Packaging dimensions (L x D x H): 1,140 x 590 x 620 mm

Special features:

• Electromagnetic spring-actuated safety brake


• Heavy-duty, highly efficient ball bearings on all running surfaces


• Planetary gearbox for maximum mechanical efficiency


• Cast steel foot supports


• Welded steel drum


• Supplied on steel footplate, ready for installation


• Rated capacity limiter limits motor drive power to prevent winch overloading


• Quiet operation


• Low voltage control included


• Emergency stop switch available upon request

Power:

Power ratings shown are based on a 50Hz supply. (A 60Hz motor is optionally available, reducing lifting capacity by 20% and increasing speed by 20%).

Lifting capacity, lifting speed and wire rope capacity:

Note: The specified capacities are based on a 50 Hz power supply.

Towing capacity for different slopes in kg:

Notes:

• All ratings are based on the top rope layer. Each shift change on the drum increases the tensile force by 10%.


• Use a Reversing Roller for double line operation to increase pull force by approximately 85%.


• The tensile force capacities are based on a tensile load and 15% friction has been taken into account (specific applications may vary).

Warning:

• The Winch is not intended for moving or lifting persons.


• The specified load capacity is based on the top layer of rope on the drum.


• The winding of the rope on the drum must remain 5 turns away from the drum.

Warranty:

Each new Winch is warranted against defects in workmanship and materials for a period of twelve months from the date of purchase. ROPES ARE NOT COVERED UNDER WARRANTY.

Dimensions, mm/in:

Accessories:

Standard Accessories:

• Steel cable 10 mm x 60 m with safety hook.


• Low voltage controller LV-320



  • Switching cable 1, 25 mm² x 3C x 3 m


  • Pendulum switch CPB-161








• Remote control CPB-161




• Base plate

Optional accessories:

• Low voltage controller LV-320



  • Switching cable 1, 25 mm² x 3C x 3 m


  • Trailer switch PB-306 with emergency stop button








• Remote control, PB-306
