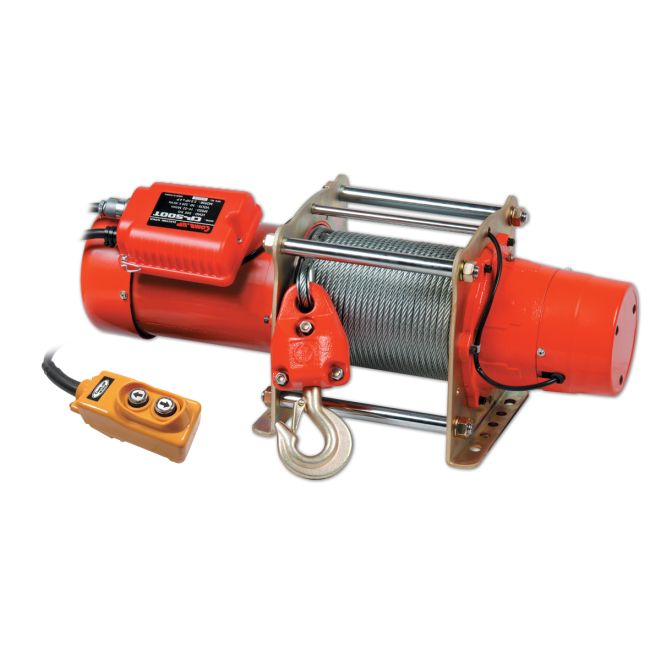

ComeUp CP 500T 400V 500 kg 60 m - Electric Lifting Winch

With a load capacity of 500 kg on the upper layer of wire rope, the CP-500T offers a lifting speed of 12-18 m/min. Powered by a 3-phase, 380-440 V power source, the Winch is driven by a 1.8 kW motor with induction brake. Maximum efficiency is achieved thanks to the planetary gears and closed drum flange. The Winch has a maximum lifting height of 58 meters and uses an electromagnetic braking system.

Technical data:

• Load capacity: 500 kg (upper layer of steel cable)
• Lifting speed: 12 - 18 m/min
• Power source: 3-phase, 380-440V
• Motor classification IP44: 1.8 kW x 4-pole induction brake motor
• Gear ratio: 42:1
• Maximum lifting height: 58 m
• Braking method: Electromagnetic
• Steel cable: 7 mm x 60 m
• Drum length: 220 mm
• Drum diameter: 102 mm
• Drum flange diameter: 180 mm
• Bolt pattern mounting: 267 mm x 156 mm
• Net weight (standard version): 54 kg
• Gross weight: 56 kg
• Housing dimensions (L x D x H): 704 x 260 x 299 mm
• Box dimensions (L x D x H): 740 x 280 x 350 mm

Optional accessories:

Wireless remote control: Telepp 2K CP 5 T (wireless remote control)

Dimensions:
See attached image for details.

Standard accessories:

Steel cable 7 mm x 60 m
Weight hook, CHW-0005
Remote control, PB-331Switching cable 3.5 mm² x 5C x 6 m
PB-331 handheld transmitter with emergency stop button

Warning:
The Winch is not intended for lifting personnel. The specified lifting capacity refers to the upper layer of the wire rope.

Warranty:
Each new Winch is warranted against defects in workmanship and materials for twelve months from date of purchase. Wire ropes are not covered by the warranty.

The above performance data is based on a 50 Hz power supply. (60 Hz motor available as an option, reducing lifting capacity by 20% and increasing speed by 20%.

Lifting capacity, lifting speed and wire rope capacity:

Note: The above performance values are based on 50Hz power supply.

Traction force for different slope angles in kg

Remark:
1. all data refer to the top layer. For each layer reduced on the drum, the tensile force increases by 10%.
2. For double line operation, use a catch block to increase line pull by approximately 85%.
3. tensile capacities are based on a tensile load and 15% friction (specific applications may vary).

Warning
Under no circumstances is the winch intended for moving or lifting persons.
The rated capacity is based on the top layer of rope on the drum.
The rope wrapped on the drum must remain 5 turns away from the drum.

Warranty
Each new winch is warranted against defects in workmanship and materials for a period of twelve months from the date of purchase.
CABLES ARE NOT COVERED BY WARRANTY.
