ComeUp CP 750 (kg) T 400V - Electric Winch with 750 kg Lifting Force
€3,436.40 €2,840.00

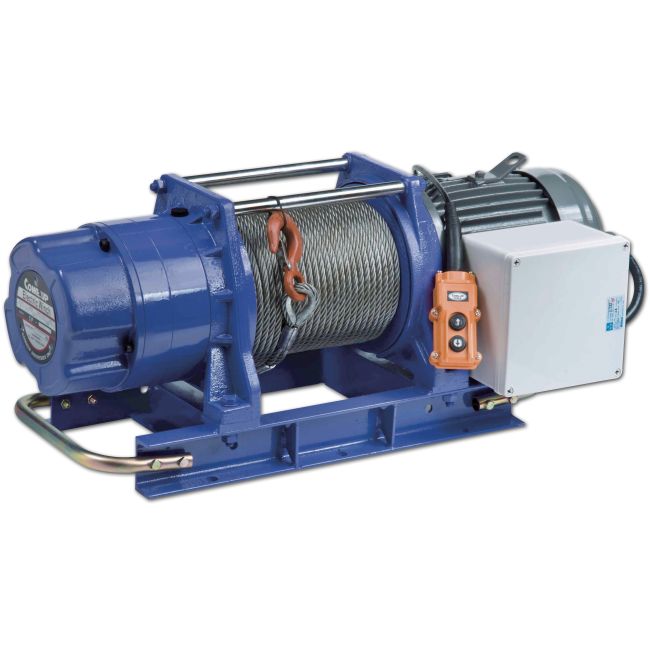

The ComeUp CP-750T is a reliable electric Winch with a lifting force of 750 kg on the upper pulley. It is perfect for a wide range of applications and is characterized by its compact design.
Technical data.
- Load capacity: 750 kg on the wire rope top pulley
- Lifting speed: 10 - 15 m/min
- Power supply: 3-phase, 380-440 V
- Motor class IP54: 2.2 kW x 4-pole induction brake motor
- Gear ratio: 58:1
- Maximum lifting height: 58 m
- Braking methods: Electromagnetic
- Steel cable: 9 mm x 60 m
- Drum length: 240 mm
- Drum diameter: 114 mm
- Drum flange diameter: 240 mm
- Bolt pattern mounting: 300 mm x 400 mm
- Net weight (standard version): 135 kg
- Gross weight: 165 kg
- Box dimensions (L x D x H): 870 x 424 x 360 mm
- Box dimensions (L x D x H): 970 x 530 x 520 mm
SKU
AD.2
EAN Number:
7439657039027
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The ComeUp CP-750T impresses with its lightweight and compact design, making it easy to install. It is equipped with an electromagnetic spring braking system that ensures maximum safety.
This Winch has a powerful 2.2 kW motor with four poles and an inductive brake that ensures reliable operation. The planetary gears ensure maximum mechanical efficiency. The closed drum flange prevents rope entrapment between the drum and the support casting.
The CP-750T has a maximum lifting height of 58 m and a lifting speed of 10-15 m/min. It is supplied with a 9 mm x 60 m wire rope, and is assembled with a 300 mm x 400 mm cartridge.
Technical data.
- Load capacity: 750 kg for the wire rope top layer
- Lifting speed: 10 - 15 m/min
- Power supply: 3-phase, 380-440 V
- Motor class IP54: 2.2 kW x 4-pole induction brake motor
- Gear ratio: 58:1
- Maximum lifting height: 58 m
- Braking methods: Electromagnetic
- Steel cable: 9 mm x 60 m
- Drum length: 240 mm
- Drum diameter: 114 mm
- Drum flange diameter: 240 mm
- Bolt pattern mounting: 300 mm x 400 mm
- Net weight (standard version): 135 kg
- Gross weight: 165 kg
- Housing dimensions (L x D x H): 870 x 424 x 360 mm
- Box dimensions (L x D x H): 970 x 530 x 520 mm
Load capacity, lifting speed and rope capacity:
|
Rope layer
|
Lifting forcekg
|
Lifting speed, m/min
|
Total rope on the drum, m |
|
1e
|
1.188
|
10
|
9,9 |
|
2e
|
1.036
|
11
|
21,3 |
|
3e
|
920
|
12,4
|
34,2 |
|
4e
|
826
|
13,8
|
48,5 |
|
5e
|
750
|
15
|
60 |
Traction force for different slope angles in kg
|
Model
|
Flat surface
|
Slope angle % Slopes in degrees
|
||||
|
10% 60°
|
20% 11°
|
40% 25°
|
60% 31°
|
80% 39°
|
||
|
CP-750T
|
5.500
|
3.000
|
2.200
|
1.500
|
1.200
|
1.000 |
Accessories:
| Standard accessories | Optional accessories |
|
|
Note:
The power values given are based on a 50Hz power supply.
Warning:
The Winch is not intended for moving or lifting persons. The specified lifting capacity is based on the top layer of rope on the drum. The rope on the drum must remain 5 windings away from the drum.
Warranty:
Each new Winch is warranted against defects in material and workmanship for a period of twelve months from the date of purchase. Cables are excluded from the warranty.
Dimensions (mm/in):
Body: 870 x 424 x 360 mm.
Box: 970 x 530 x 520 mm
| EAN | 7439657039027 |
|---|---|
| Weight | 165.000000 |
| HS Code | 842531-00-90 |
| Energy source | 400 VAC |
| Force | 10-200 |
| Speed (m/min) | 11-20 |
| Cable length (m) | 11-20 |
