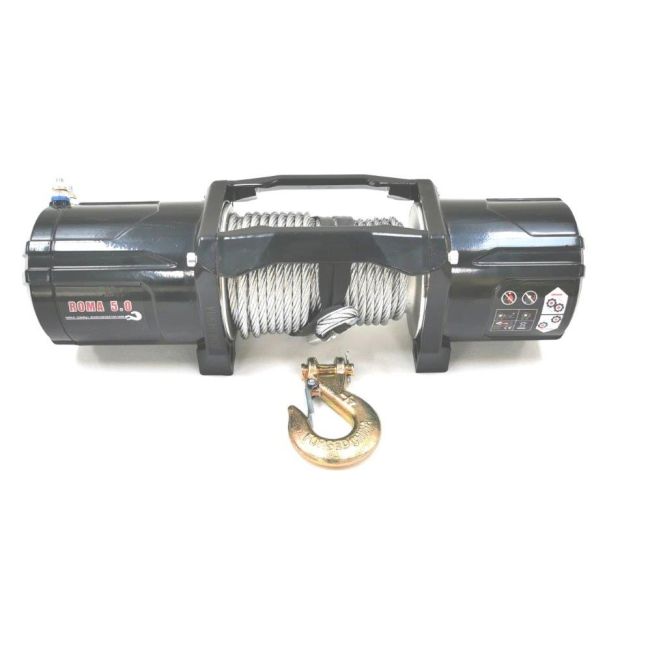

Winch Roma 2268 (kg) 24V + High quality remote control + IP67 waterproof

The Roma 2268 (kg) 24V Winch impresses with a rated 2268 kg pulling force and a Series-wound motor with 2.4 kW / 3.2 hp input power and 1 kW / 1.3 hp output power. The gear ratio of 172:1 ensures reliable performance. The included synthetic cable weighs 8 kg, while the steel cable weighs 10 kg.

Technical Specifications:

• Rated traction force: 2268 kg
• Motor: Series wound, 2.4 kW / 3.2 hp input, 1 kW / 1.3 hp output
• Gear ratio: 172:1
• Cable diameter and length: Ø6.4 mm × 14 m
• Drum size: Ø50 mm × 138 mm
• Screw pattern attachment: 168 mm × 76.2 mm, 4-M8
• Overall dimensions (L × W × H): 390.8 mm × 115 mm × 124 mm
• Net weight: synthetic cable 8 kg, steel cable 10 kg

Power (first layer):

• 0 Ibs (0 kg): 4.0 ft/min (1.2 m/min), 15 A
• 1500 Ibs (1134 kg): 1.1 m/min (3.6 ft/min), 32 A
• 3500 Ibs (2041 kg): 0.9 m/min (2.8 ft/min), 80 A
• 5000 Ibs (2722 kg): 0.5 m/min, 130 A

Pull and rope capacity in the layer:

• Layer 1: 2268 kg tensile force, 12.1 ft (3.7 m) rope on drum
• Layer 2: 1848 kg tensile force, 26.9 ft (8.2 m) rope on drum
• Position 3: 1559 kg tensile force, 44.6 ft (13.6 m) rope on drum
• Position 4: 1390 kg tensile force, 4.3 m (14 ft) rope on the drum

Warning: Please follow all safety guidelines before using the Winch.

Warranty: We offer [number of] years warranty on this product. Please refer to the warranty terms and conditions for more information.
