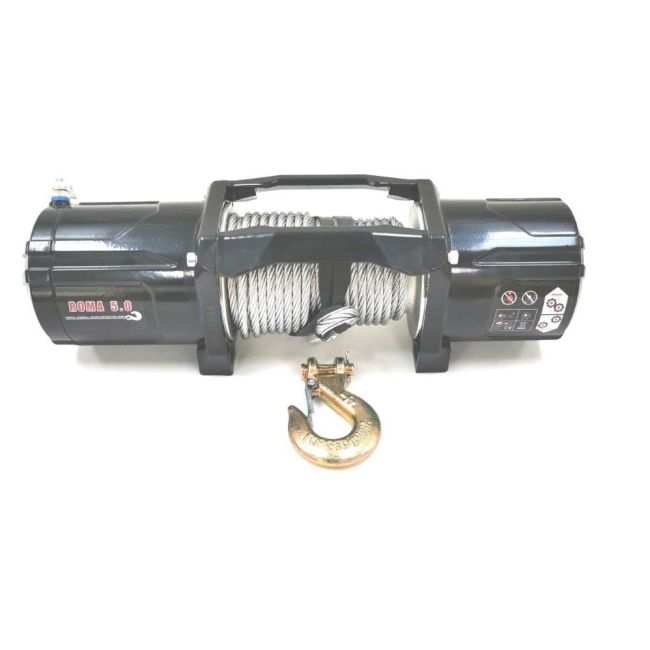

Roma 2268 (kg) E 12V Winch with high-quality radio remote control

The Roma 2268 (kg) E 12V Winch offers excellent performance and precision for a wide range of applications. With an impressive pulling force of 2268 kg, it is perfect for demanding tasks.

Technical data:

• Motor: Series wound
• Power: Input 2.4 kW / 3.2 hp; output 1 kW / 1.3 hp
• Gear ratio: 172:1
• Cable diameter and length: Ø6.4 mm × 14 m
• Drum size: Ø50 mm × 138 mm
• Mounting pattern: 168 mm × 76.2 mm 4-M8
• Overall dimensions (L × W × H): 390.8 mm × 115 mm × 124 mm
• Net weight: 8 kg (synthetic cable), 10 kg (steel cable)

Performance data (first layer):

• Pull force: 0 kg at 4.0 m/min and 25 A
• Pull force: 1134 kg at 3.6 m/min and 50 A
• Traction force: 2041 kg at 2.8 m/min and 140 A
• Traction force: 2722 kg at 1.4 m/min and 210 A

Winch Capacity in the shifts:

• Shift 1: 2268 kg pulling force, 3.7 m of rope on the drum
• Shift 2: 1848 kg tensile force, 8.2 m rope on the drum
• Shift 3: 1559 kg tensile force, 13.6 m rope on the drum
• Layer 4: 1349 kg tensile force, 14 m rope on the drum

Warning: Please observe all safety instructions before using the Winch.

Warranty: The Roma 2268 (kg) E 12V Winch comes with a warranty. More information can be found in our warranty conditions.

High quality remote control included. Order now and benefit from advanced operation.
