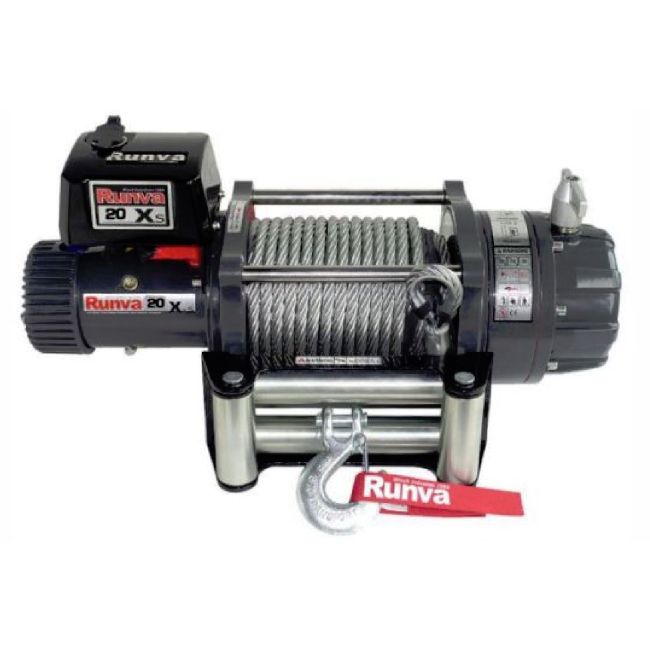

RUNVA EWB 9070 (kg) 24V Electric Winch with high-quality radio remote control
€1,318.90 €1,090.00
Discover the powerful RUNVA EWB 9070 Winch with 9072 kg pulling force, a strong motor and waterproof IP67 housing. The included high-quality radio remote control ensures easy operation. Ideal for demanding applications in different environments.
SKU
3.L.1
EAN Number:
7439657026065
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The RUNVA EWB 9070 is a reliable 24V Winch with an impressive pulling force of 9072 kg. The powerful tmotor with an input power of 6.1 kW and an output power of 3.1 kW ensures powerful performance. With a gear ratio of 370:1, it can handle demanding tasks with ease.
Technical Specifications:
- Rated traction force: 9072 kg
- Motor: Permanent magnet, 24V, 6.1 kW input, 3.1 kW output
- Gear ratio: 370:1
- Cable diameter and length: Ø 12 mm × 25.5 m
- Drum size: Ø 88 mm × 217 mm
- Mounting bolt pattern: 254 mm × 114.3
- Dimensions (L×W×H): 626 mm × 214 mm × 252 mm
- Weight: 70 kg
The Winch comes with a high-quality radio remote control for convenient remote control. The robust IP67 housing ensures waterproof use in various environments.
Points of interest:
- Item number: 3.L.1
- Warranty information and warnings can be found below.
| 12V DC PERFORMANCE SPECS (first layer) | |||
| Line Pull | Line Speed | Motor | Pull by layer |
| Lbs.(kgs) | Ft/min. (M/min.) |
Current | layer/Lbs.(kgs) |
| 0 | 26.2(8.0) | 60amps | 1/20000(9072) |
| 6000 (2722) | 10.5(3.2) | 200amps | 2/16129(7316) |
| 10000 (4536) | 7.87(2.4) | 280amps | 3/13513(6129) |
| 14000 (6350) | 6.56(2.0) | 340amps | 4/11628(5274) |
| 17000 (7711) | 5.25(1.6) | 390amps | |
| 20000 (9072) | 3.9(1.2) | 430amps | |
| EAN | 7439657026065 |
|---|---|
| Weight | 70.000000 |
| HS Code | 842531-00-90 |
| Energy source | 24 V |
| Speed (m/min) | 6-10 |
