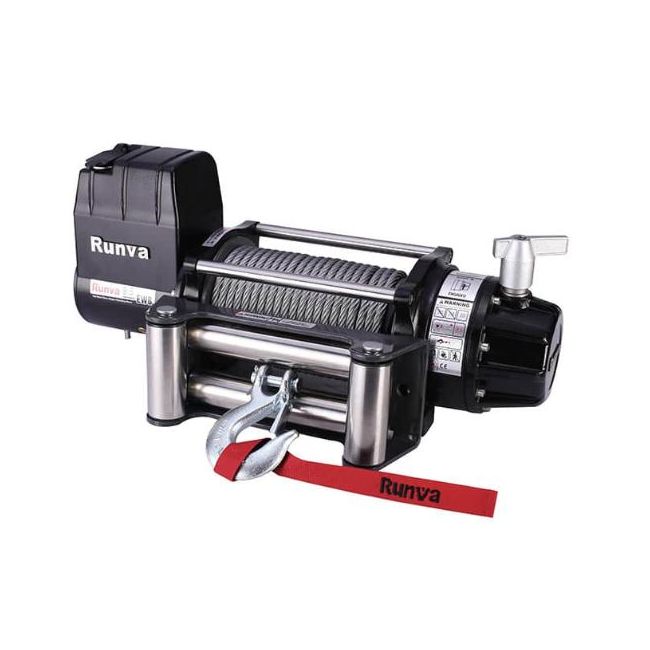

RU EWB 5700 (kg) E 24V - High performance radio remote control + IP67 waterproof
€713.90 €590.00
The powerful RU EWB 5700 Winch offers an impressive pulling force of 5700 kg and is equipped with a high-quality radio remote control. Its robust construction and IP67 waterproofing make it ideal for demanding applications. Now available at a reduced price of €702.10 instead of €590.00.
SKU
4.G.2
EAN Number:
7439657014055
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The RU EWB 5700 winch with high-quality radio remote control impresses with its impressive performance and robustness. The pulling force of 5700 kg, combined with an IP67 waterproof housing, makes it the ideal choice for demanding applications.
Technical data.
- Motor: Series wound
- 12V: input 5.9 kW / 7.9 hp; output 2.4 kW / 3.2 hp
- 24V: input 4.8 kW / 6.4 hp; output 3.1 kW / 4.2 hp
- Gear ratio: 228:1
- Cable diameter and length: Ø10.2 mm × 25.5 m
- Drum size: Ø63mm × 217mm
- Mounting pattern: 254mm × 114.3mm 4-M10
Power and rope capacity:
-
- Low: 5670 kg at 4.9 m/min
-
- Low: 4434 kg at 11.1 m/min
-
- Low: 3641 kg at 18.3 m/min
-
- Low: 3088 kg at 25.5 m/min
Weighing 43 kg and measuring 601 mm × 160 mm × 254 mm, the RU EWB 5700 is a compact and powerful solution.
Warning: Before use, observe all safety precautions. Please read the operating instructions carefully.
Warranty: This product is covered by a standard warranty. Please refer to our warranty conditions for more information.
| Rated traction force | 5670 kg | |
| Motor: series wound | 12V: Input: 5.9kW / 7.9hp; Output: 2.4kW / 3.2hp 24V: Input: 4.8kW / 6.4hp; Output: 3.1kW / 4.2hp |
|
| Gear ratio | 228:1 | |
| Cable (Dia.× L) | Ø10.2mm×25.5m | |
| Drum Size (Dia.× L) | Ø63mm×217mm | |
| Mounting bolt pattern | 254mm×114.3mm 4-M10 | |
| Line speed Ampère Volt First layer | Line pull force and rope capacity in layer Line pull force | ||||||
| Line Tension Ibs.(kg) | Line Speed m/min | Current A | Layer rope | Nominal tensile force lbs.(kg) | Total cable on drum ft (m) | ||
| 12DC | 24DC | 12DC | 24DC | 1 | 5670 | 4.9 | |
| 0 | 10.0 | 10.6 | 75 | 60 | 2 | 4434 | 11.1 |
| 1361 | 4.8 | 5.3 | 190 | 85 | 3 | 3641 | 18.3 |
| 4082 | 2.5 | 3.1 | 360 | 150 | 4 | 3088 | 25.5 |
| 5670 | 1.6 | ||||||
| Item | EWB12500U | |
| Overall dimensions | ||
| (L×W×H) | 601 mm ×160 mm ×254 mm | |
| Net weight kg | 43 kg |
| EAN | 7439657014055 |
|---|---|
| Weight | 43.000000 |
| HS Code | 842531-00-90 |
| Energy source | 24 V |
| Speed (m/min) | 6-10 |
