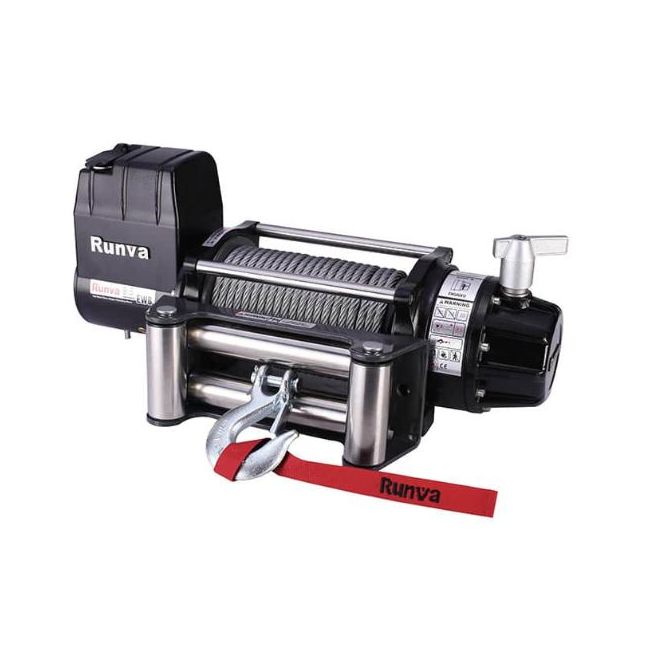

RU EWB 5700 (kg) E 12V - Electric Winch with radio remote control
€713.90 €590.00
The RU EWB 5700 (kg) E 12V Winch offers an impressive pulling force of 5670kg. With a series-wound motor, robust Ø10.2mm×25.5m cable and a high-quality radio remote control, it is ideal for demanding tasks. Reliable, powerful and IP67 waterproof - perfect for a wide range of applications.
SKU
4.H.2
EAN Number:
7439657014086
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The RU EWB 5700 (kg) E 12V Electric Winch is the solution for demanding towing applications. With a rated pulling force of 5670 kg and a series-wound motor, it offers impressive performance. The Winch is equipped with a high-quality radio remote control for easy remote control.
Technical Specifications:
- Motor: Series wound
- 12V: Input: 5.9 kW / 7.9 hp; Power: 2.4 kW / 3.2 hp
- 24V: Input: 4.8 kW / 6.4 hp; Power: 3.1 kW / 4.2 hp
- Gear ratio: 228:1
- Cable diameter and length: Ø10.2 mm × 25.5 m
- Drum size (diameter × length): Ø63 mm × 217 mm
- Fastening pattern: 254 mm × 114.3 mm 4-M10
Pull capacity and rope capacity in the shifts:
| Low | Pulling force (kg) | Speed (m/min) | Current (A) |
|---|---|---|---|
| 1 | 5670 | 4,9 | 75 (12DC) |
| 2 | 4434 | 11,1 | 190 (24DC) |
| 3 | 3641 | 18,3 | 360 (12DC) |
| 4 | 3088 | 25,5 | - |
The Winch comes with the part number EWB12500U and has compact dimensions of 601 mm × 160 mm × 254 mm. Weighing only 43 kg, it is easy to handle. This Winch is the ideal choice for tasks requiring reliability and performance.
| EAN | 7439657014086 |
|---|---|
| Weight | 43.000000 |
| HS Code | 842531-00-90 |
| Energy source | 12 V |
| Speed (m/min) | 6-10 |
