Chain hoist 2,000 kg 230 V -10 m-2 speeds-radio remote control with 2 transmitters + cable control

Chain hoist 2,000 kg 230 V - 2 speeds-radio remote control with 2 transmitters-cable operation

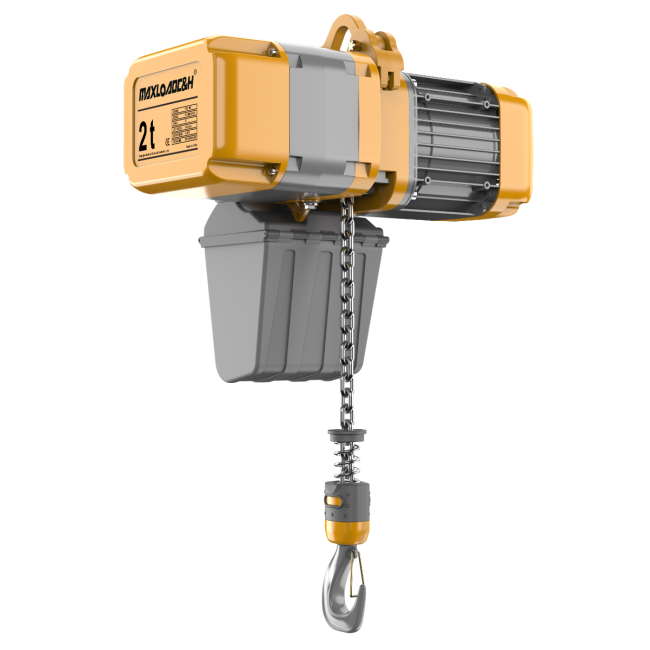

Hoist HHER02-01FS

• SPECIFICATION
• • Capacity: 2000kg
  • Lifting Speed: 0.8~6.8 m/min - Inverter stepless
  • Lifting motor: 3.0 kW
  • Input Voltage: 230v/50hz/1p

• • ELECTRIC HOIST DATA
    • General:

  Type ...........................................................	Chain Type with Hook suspension
  Model ..........................................................	HHBB02-01FS
  Capacity .......................................................	2 ton
  Test load ......................................................	2.5 ton
  HS Code ......................................................	8425110000
  Noise level ....................................................	81 db

  • Operating environment

  Hoist use ......................................................	Indoor
  Operating temperature range ............................	-20℃ ~ +40℃
  Operating humidity range .................................	≤80%

  • Lifting Mechanism

  Hoist lifting speed ...........................................	0.8~6.8 m/min - Inverter stepless
  Motor power ..................................................	3.0 kW
  Rotation Speed ..............................................	1440 r/min
  Hoist group ....................................................	ISO/FEM 2m/M5
  Protection class .............................................	IP 66
  Load chain falls number....................................	1 fall
  Load chain size ..............................................	10.0 mm

  • ELECTRICAL

  Input Voltage .................................................	230v/50hz/1p
  Control Voltage ..............................................	24v

• Switching on the radio transmitters

To switch on the transmitter, pull out the emergency stop and then press the two green buttons simultaneously. You will hear a sound and the receiver will indicate with the big red light that you can hoist and drive back and forth. This for you as information that you are connected and for everyone else as an additional warning not to stay near the hoist.

You have two transmitters. They can only work in turn, never simultaneously. However, the last one enabled by the two green buttons pushes the other one away. Until the other via the two green buttons again in simultaneous pressing would take over again.
