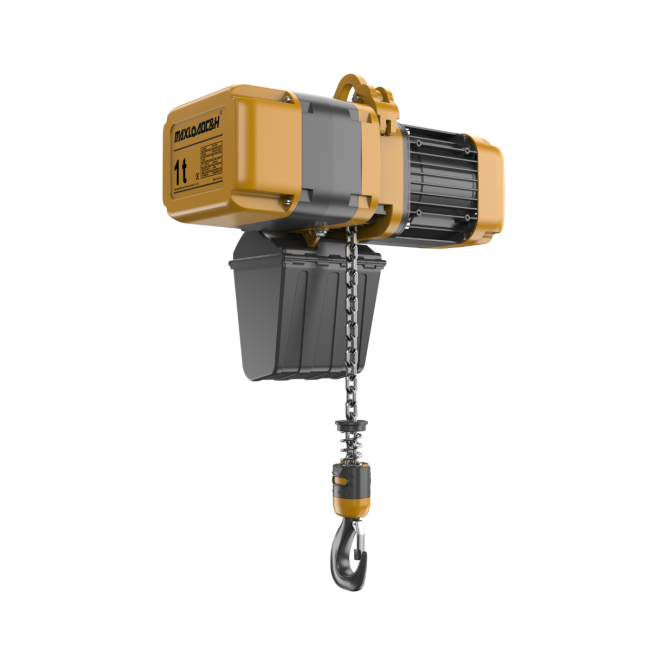

Chain hoist 1,000 kg 230 V -10 m-2 speeds-radio remote control with 2 transmitters + cable control
€2,510.75 €2,075.00
Chain hoist 1,000 kg 230 V - 2 speeds-radio remote control with 2 transmitters-cable operation
Hoist HHER01-01FS
-
-
- SPECIFICATION
-
- Capacity: 1000kg
- Lifting Speed: 0.8/6.8 m/min - Inverter stepless
- Lifting motor: 1.5 kW
- Input Voltage: 230v/50hz/1p
-
SKU
6.F.4
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
Chain hoist 1,000 kg 230 V - 2 speeds-radio remote control with 2 transmitters-cable operation
Hoist HHER01-01FS
-
-
- SPECIFICATION
- Capacity: 1000kg
- Lifting Speed: 0.8/6.8 m/min - Inverter stepless
- Lifting motor: 1.5 kW
- Input Voltage: 230v/50hz/1p
-
- ELECTRIC HOIST DATA
- General:
|
Type ........................................................... |
Chain Type with Hook suspension |
|
Model .......................................................... |
HHER01-01FS |
|
Capacity ....................................................... |
1 ton |
|
Test load ...................................................... |
1.25 ton |
|
HS Code ...................................................... |
8425110000 |
|
Noise level .................................................... |
81 db |
- Operating environment
|
Hoist use ...................................................... |
Indoor |
|
Operating temperature range ............................ |
-20℃ ~ +40℃ |
|
Operating humidity range ................................. |
≤80% |
- Lifting Mechanism
|
Hoist lifting speed ........................................... |
0.8/6.8 m/min - Inverter stepless |
|
Motor power .................................................. |
1.5 kW |
|
Rotation Speed .............................................. |
1440 r/min |
|
Hoist group .................................................... |
ISO/FEM 2m/M5 |
|
Protection class ............................................. |
IP 66 |
|
Load chain falls number.................................... |
1 fall |
|
Load chain size .............................................. |
7.1 mm |
- ELECTRICAL
|
Input Voltage ................................................. |
230v/50hz/1p |
|
Control Voltage .............................................. |
24v |
- Switching on the radio transmitters
To turn on the transmitter, pull out the emergency stop and then press the two green buttons simultaneously. You will hear a sound and the receiver will indicate with the big red light that you can hoist and drive back and forth. This for you as information that you are connected and for everyone else as an additional warning not to stay near the hoist.
You have two transmitters. They can only work in turn, never simultaneously. However, the last one enabled by the two green buttons pushes the other one away. Until the other via the two green buttons again in simultaneous pressing would take over again.
| Weight | 65.000000 |
|---|---|
| HS Code | 8425110000 |
| Applications | Construction and scaffolding, Industry and workshops, Production lines and assembly, Warehousing and logistics, Theater and stage technology, Shipbuilding and ports |
| Type of winch or parts | Lifting winch: Cutting load falls |
| Energy source | 230 VAC |
| Force | 501-2500 |
| Speed (m/min) | 6-10 |
| Cable length (m) | 0-10 |
