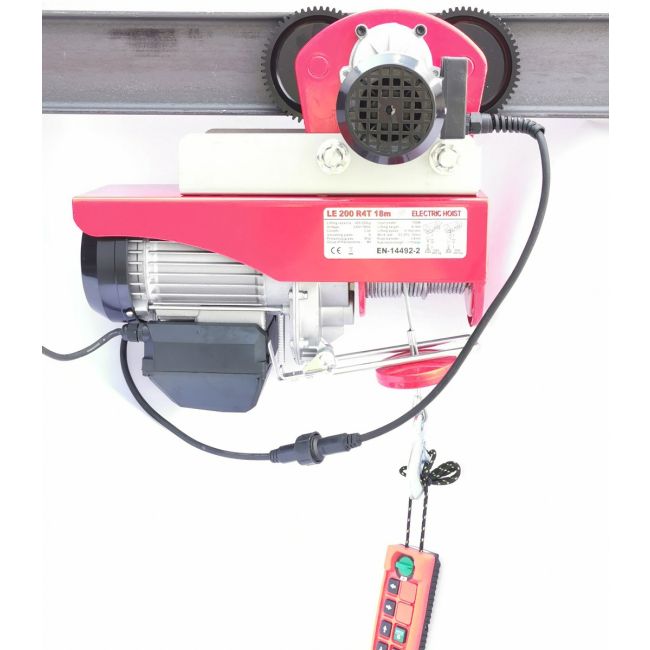

LE 200 R4 230V 18-meter trolley with radio-controlled remote - Electric Winch with Trolley
The LE 200 R4 230V winch with trolley features an 18-meter steel cable, a high-quality radio remote control, and a lifting capacity of 200 kg (400 kg with a pulley). Ideal for precise lifting and lowering in various applications.
Adjusting the trolley to a wider beam
The trolley is equipped with M18 connecting rods as standard. If the trolley needs to be mounted on a wider I-beam, the distance between the four wheels can easily be increased.
Procedure:
- Replace the connecting rods
- Use M18 threaded rods.
- Cut two threaded rods to the desired length, matching the width of the beam.
- Replace the existing threaded rods with the longer ones.
- Install the angle profiles
- The two angle profiles on which the winch is mounted can be flipped over (facing outward) if desired.
- This increases the distance between the flanges of the angle profiles, making the trolley suitable for an even wider profile.
- Secure the assembly
- Use four additional M18 nuts and washers.
- Install a nut and washer on both sides of each angle profile so that the angle profiles are securely clamped between the nuts.
- Tighten all nuts securely and check that the assembly is free of play.
- Adjust the rollers
- Slide the four casters into the correct position so that they run properly on the flanges of the I-beam.
- Check that all four wheels rest evenly on the profile and can rotate freely.
- After assembly, check again to make sure all fasteners are securely tightened.
With longer M18 threaded rods, the trolley can easily be adjusted to fit virtually any desired beam width.
SKU
2.K.1
EAN Number:
7439656968946
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
LE 200 R4 230V 18-meter Trolley with Radio Remote Control - Electric Winch with Trolley
The LE 200 R4 230V winch with trolley is revolutionizing lifting and lowering operations with its advanced technology. Equipped with an 18-meter steel cable—longer than the standard 12 meters—this winch offers an extended reach.
Technical specifications:
- Lifting capacity: 200 kg (400 kg with guide pulley)
- Speed: 10 m/min
- Motor with thermal switch for added safety
- IP54 protection rating for use in various environments
- Emergency stop switch for immediate shutdown
- Includes a Return pulley for versatile applications
Trolley:
- Load capacity: 1,000 kg
- Travel speed: 16.4 m/min
- Adjustable to beams with a height of 10–22 cm and a width of 68–110 mm
- Complies with CE and EN 11492-2 standards
The winch has CE/GS/EMC/RoHS approvals and features such as upper and lower limit switches, anti-reverse winding, and an emergency stop switch. The thermal circuit breaker ensures the safety of the motor.
Technical specifications:
- Rated voltage: 220/230 V ~ 50 Hz
- Rated current: 7.4 A
- Power consumption: 1600 W
- Lifting capacity: 500 kg (single-rope), 1000 kg (double-rope)
- Lifting height: 18 m (single line), 9 m (double line)
- Lifting speed: 10 m/min (single line), 5 m/min (double line)
- Steel cable Diameter: 3.8 mm
- Tensile strength of the steel cable ≥ 1,870 N/mm²
Warning: Avoid sudden pulling (sudden twisting of the cable) and inching (rapid, short lifts or drops). Ensure the cable does not become knotted to prevent damage to the motor.
Warning: Avoid sudden pulling or inching to prevent damage to the motor. Make sure the rope does not become knotted.
Warranty: Please contact us for information and warranty terms.
| EAN | 7439656968946 |
|---|---|
| Weight | 26.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
| Force | 10-200 |
| Speed (m/min) | 11-20 |
