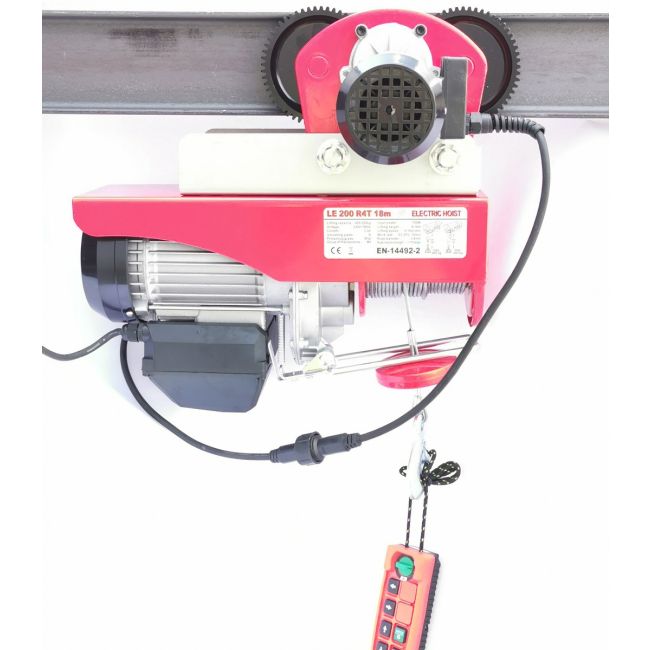

LE 100 R4 - Lifting winch 230V 18 m with a trolley and radio-controlled remote
€387.20 €320.00
LE 100 R4 - Lifting winch 230V 18 m with a trolley and radio-controlled remote
Discover the innovative LE 100 R4 230V hoist with a high-quality remote control and an 18-meter steel cable. High lifting capacity of 100 kg (200 kg with a guide roller) and numerous safety features for reliable operation.

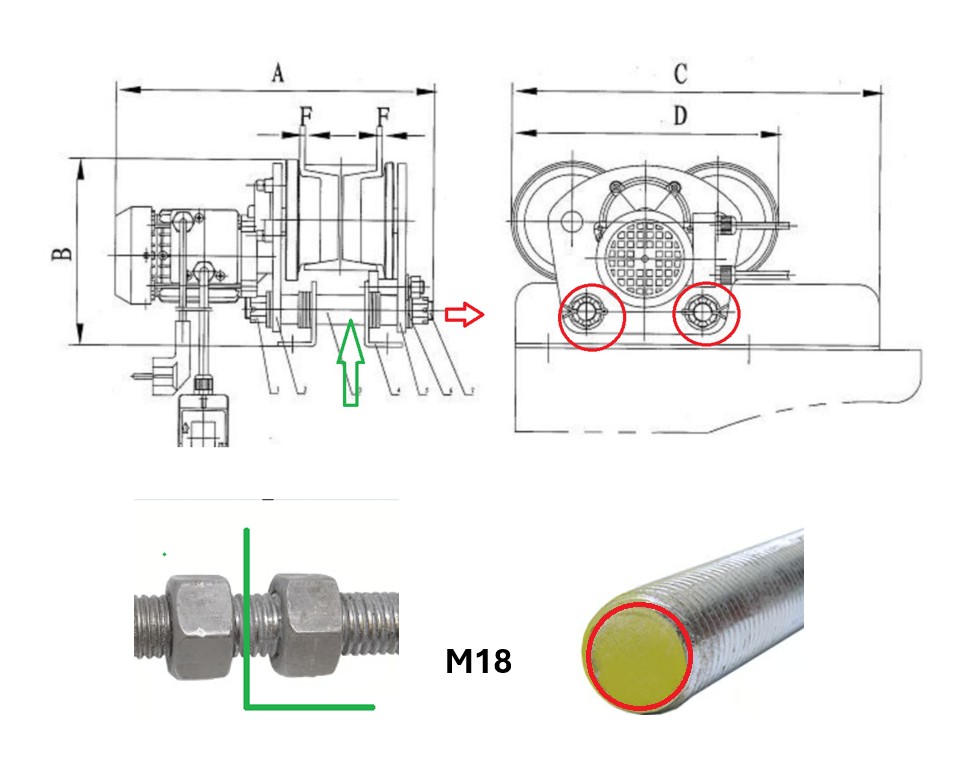

Adjusting the trolley to a wider beam
The trolley is equipped with M18 connecting rods as standard. If the trolley needs to be mounted on a wider I-beam, the distance between the four wheels can easily be increased.
Procedure:
- Replace the connecting rods
- Use M18 threaded rod.
- Cut two threaded rods to the desired length, matching the width of the beam.
- Replace the existing threaded rods with the longer ones.
- Install the angle profiles
- The two angle profiles on which the winch is mounted can be flipped over (facing outward) if desired.
- This increases the distance between the flanges of the angle profiles, making the trolley suitable for an even wider profile.
- Secure the assembly
- Use four additional M18 nuts and washers.
- Install a nut and washer on both sides of each angle profile so that the angle profiles are securely clamped between the nuts.
- Tighten all nuts securely and check that the assembly is free of play.
- Adjust the rollers
- Slide the four casters into the correct position so that they run properly on the flanges of the I-beam.
- Check that all four wheels rest evenly on the profile and can rotate freely.
- After assembly, check again to make sure all fasteners are securely tightened.
With longer M18 threaded rods, the trolley can easily be adjusted to fit virtually any desired beam width.
SKU
2.L.1
EAN Number:
7439656968939
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
LE 100 R4 - Lifting winch 230V 18 m with a trolley and radio-controlled remote
The LE 100 R4 230V winch sets a new standard with 18 meters of steel cable instead of the usual 12 meters. The radio-controlled remote allows for easy operation. With an impressive lifting capacity of 100 kg (200 kg with a guide roller), it offers a wide range of applications.
Technical specifications:
- Lifting capacity: 100 kg (200 kg with guide roller)
- Upper and lower limit switches
- Speed: 10 m/min
- Motor with thermal circuit breaker
- Protection class IP54
- Steel cable 3 mm x 18 meters
- Emergency stop switch
- Load hook with automatic brake
- Return pulley included for loads over 200 kg & 5 m/min
- Connection cable (approx. 3 meters long)
Trolley:
- Load capacity: 1,000 kg
- Travel speed: 16.4 m/min
- Beam height: 10–22 cm
- Beam width: 68–110 mm
- CE and EN-11492-2 certified
Additional features:
- Child lock with green button
- Emergency stop function
- TÜV, EMC, CE certification
- Complies with the EN-11492-2 standard with a patented design
- Upper and lower limit functions
- Anti-backflow winding
- Thermal circuit breaker
- Protection class IP54
- Insulation class B
- Mechanism group M1
- Duty cycle: S3-25%-10 min
- Rated voltage: 220/230 V ~ 50 Hz
- Rated current: 7.4 A
- Power consumption: 1600 W
- Lifting capacity: 500 kg (single rope), 1,000 kg (double rope)
- Lifting height: 18 m (single-line), 9 m (double-line)
- Lifting speed: 10 m/min (single line), 5 m/min (double line)
- Steel cable diameter: 3 mm
- Tensile strength of steel cable: ≥ 1,870 N/mm²
Warning: Avoid direct up-and-down movement (toking) and rapid up-and-down movement at short intervals (inching). Allow the winch time to dissipate its energy to prevent damage.
Warranty: This winch meets the highest quality standards and is covered by our warranty. If you have any questions or issues, please do not hesitate to contact us.
| EAN | 7439656968939 |
|---|---|
| Weight | 26.000000 |
| HS Code | 842531-00-90 |
| Energy source | 230 VAC |
| Force | 10-200 |
| Speed (m/min) | 11-20 |
