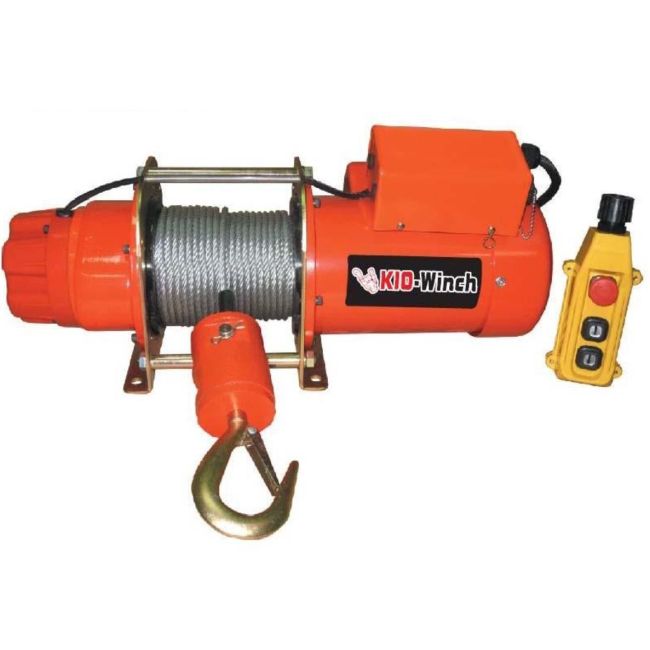

KIO GH 300 (kg) 230V 30 m - Electric Lifting Winch - 37 m/min lifting speed

The super-fast lifting winch KIO GH 300 kg 230 VAC impresses with its powerful features:

• Speed: With an impressive lifting speed of 37 m/min on the top layer, this Winch is suitable for applications where speed is crucial.

• Motor power: Equipped with a 2 hp, 4-pole motor, the winch offers reliable and powerful performance.

• Safety: The winch has a positive cable lock on the drum and an electromagnetic spring-loaded safety brake for added safety.

• Compact Design: With its compact design, this Winch is ideal for applications with limited space.

Technical Specifications:

• Lifting capacity: 300 kg
• Lifting speed: 22 m/min (lower position), 37 m/min (upper position)
• Motor class IP44: 1.8 × 4 kW/pole
• Maximum lifting height: 29 m
• Steel cable: 7 mm × 30 m
• Drum dimensions: Width 143 mm, diameter 73 mm, flange diameter 162 mm
• Bolt pattern mounting: 184 × 160 mm
• Net weight: 48 kg, gross weight: 50 kg

Warning: Cable winches should not be used to move people.

Warranty: Each new Winch is warranted against defects in workmanship and materials for a period of twelve months from the date of purchase. Cables are not covered by the warranty.

Standard Accessories:

• Steel cable 7 mm × 30 m
• Weight hook K-14
• Switching cable 3.5 mm² × 5C × 3 m
• Power cord 3.5 mm² × 3C × 85 cm and industrial plug
• Shuttle switch K-213

Optional accessories: Remote control K-213A Assembly
