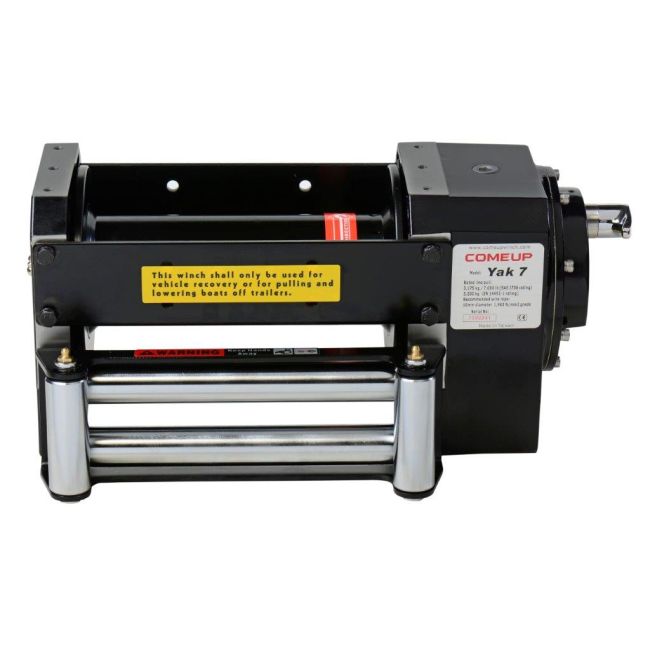

ComeUp YAK 7 STD (3200 kg) EN 14492 - hydraulic winch with worm gearbox

ComeUp YAK 7 STD (3200 kg) EN 14492 - Worm Gear Hydraulic Winch

The ComeUp YAK 7 STD (3200 kg) is a Worm Gear Hydraulic Recovery Winch known for its excellent performance and reliability. Designed to meet the EN 14492 standard, it offers a lifting capacity of 3200 kg and an impressive lifting speed of 12 m/pm.

Technical specifications:

• Lifting capacity: 3200 kg
• EN 14492 standard: Meets requirements with a D/d ratio of 10:1, a wire rope strength of 2:1 and a freeboard of 1.5d for recovery and utility vehicles.

Characteristics:

• Fast and variable recovery speeds for efficient work.
• Ergonomic T-handle for quick ejection of wire rope.

Scope of delivery:

• Item number: 1.Q.4.b
• Standard accessories: 149 mm Reversing roller for standard drum.

Note: The Winch is not intended for moving or lifting persons.

Warranty: Each new Winch is guaranteed against manufacturing and material defects for a period of twelve months from the date of purchase.

• Hydraulic worm gear 7,000 lb Winch
• Powered by built-in hydraulic pump or PTO
• Fast and variable recovery speeds for high work rate
• Highly efficient motor with constant torque
• Irreversible single-stage worm gear for instant braking and slip-free operation
• Ergonomic T-handle for quick uncoiling of wire rope
• Heavy duty pulley compartment with grease nipples
• EN 14492-1 supported: 10:1 D/d ratio, 2:1 wire rope strength and 1.5d freeboard for demanding salvage applications and recovery of commercial vehicles
• Compliance with standards: CE Machinery Directive 2006/42/EC, EN 14492-1:2006 Power-driven winches and SAE J706

• Part number: PN 681260 (standard drum) / PN 681266 (long drum)
• Rated tensile force: 3,175 kg / 7,000 lb (SAE J706 rating) / 3,200 kg (EN 14492-1 rating)
• Speed (with 1st rope layer): 5.2 mpm at 40 l/min (17.1 fpm at 10.6 g/min)
• Working pressure: 110 bar / 1,595 psi
• Maximum oil flow: 40 l/min (10.6 g/min)
• Hydraulic motor: 48.6 cm³/omw/min (3.0 in³/omw/min)
• Gear ratio: 1-stage planetary gearbox 50:1
• Winch construction: cast aluminum housing with steel drum
• Clutch (freewheel): Worm wheel disengaged
• Brake: irreversible worm wheel
• Turning the winch: Steel cable only needs to be wound at the bottom
• Drum diameter: 90 mm (3.5")
• Drum flange diameter: 168 mm (6.6")
• Distance between flanges: 160 mm (6.3") - standard drum / 240 mm (9.5") - long drum
• Bolt pattern mounting: 130 x 211 mm (5.1" x 8.3") - standard drum / 130 x 291 mm (5.1" x 11.5") - long drum
• Recommended wire rope: 10 mm x 10.7 m for standard drum and 16.2 m for long drum, 1,960 N/mm² quality with a minimum breaking force of 69.8 kN for EN 14492-1 classification / 3/8" x 57.4' for standard drum and 87.3' for long drum, EIPS quality with a minimum breaking force of 15,663 lbf for SAE J706 classification
• Winch weight: 29 kg / 63.9 lb - standard drum / 33 kg / 72.8 lb - long drum
• Gross weight: 29 kg / 63.9 lb - standard drum / 33 kg / 72.8 lb - long drum
• Box dimensions (L x D x H): 417 x 386 x 256 mm (16.4" x 15.2" x 10.1") - standard drum / 497 x 386 x 256 mm (19.6" x 15.2" x 10.1") - long drum
• Meets the requirements of EN 14492-1 for winches for vehicle recovery: The coefficient of use for the first layer of rope on the drum must be at least 2 / The D/d ratio to the center of the rope must be at least 10 for the drum.
