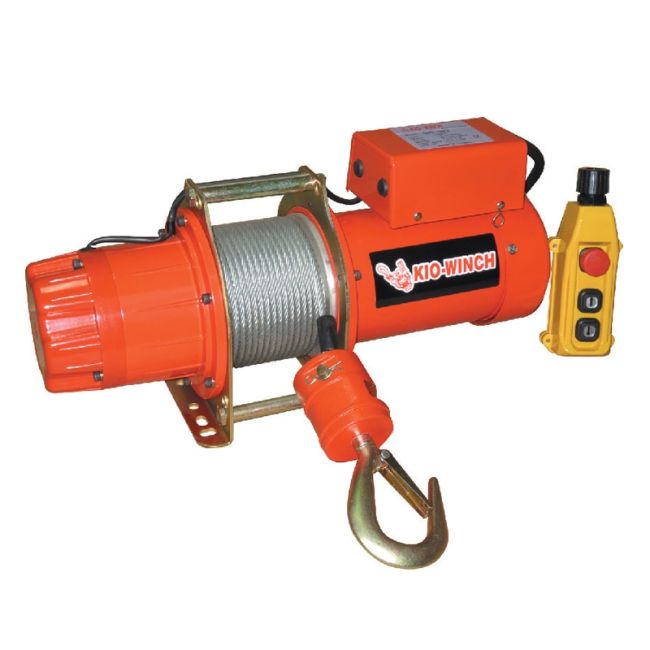

KIO GG 302 (kg) 400V 30 m - Electric Lifting Winch
€895.40 €740.00
Electric cable winch, hoisting winch, Pull winch, KIO GG 302 (3Ph), 300 kg, 30 m, 400 V
Easily attached to scaffolding thanks to its unique design and elegant shape. Makes transporting building materials etc. to upper floors and roofs much easier and safer.
The suspension with locking device facilitates installation and ensures safe working.
The ideal hoist for construction workers and roofers with a long usable rope length. The ideal lifting component for all types of scaffolding and beams.
Strong powder-coated construction ensures reliable and durable hoisting.
The hoist uses a dynamic braking system for static and dynamic loads.
|
Technical data GG 302 3Ph/ 1.15HPx4P |
||
|
Lifting force (kg) |
302 |
|
|
Lifting speed m/min |
First service |
12 |
|
Upper layer |
18 |
|
|
Rated motor power IP44 |
Kw/bars |
1.15×4 |
|
Maximum lifting height m |
29 |
|
|
Steel rope Φmm×m |
6×30 |
|
|
Dimension of drum mm |
Drum width |
110 |
|
Drum diameter |
94 |
|
|
Flange slide |
154 |
|
|
Net weight kg |
36 |
|
|
Gross weight kg |
38 |
|
|
|
|
|
SKU
1.H.2
EAN Number:
7439656972998
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
Electric cable winch, hoisting winch, Pull winch, KIO GG 302 (3Ph), 300 kg, 30 m, 400 V
Easily attached to scaffolding thanks to its unique design and elegant shape. Makes transporting building materials etc. to upper floors and roofs much easier and safer.
The suspension with locking device facilitates installation and ensures safe working.
The ideal hoist for construction workers and roofers with a long usable rope length. The ideal lifting component for all types of scaffolding and beams.
Strong powder-coated construction ensures reliable and durable hoisting.
The hoist uses a dynamic braking system for static and dynamic loads
|
Technical data GG 302 3Ph/ 1.15HPx4P |
||
|
Lifting force (kg) |
302 |
|
|
Lifting speed m/min |
First service |
12 |
|
Upper layer |
18 |
|
|
Rated motor power IP44 |
Kw/bars |
1.15×4 |
|
Maximum lifting height m |
29 |
|
|
Steel rope Φmm×m |
6×30 |
|
|
Dimension of drum mm |
Drum width |
110 |
|
Drum diameter |
94 |
|
|
Flange slide |
154 |
|
|
Net weight kg |
36 |
|
|
Gross weight kg |
38 |
|
|
|
|
|
| EAN | 7439656972998 |
|---|---|
| Weight | 38.000000 |
| HS Code | 842531-00-90 |
| Energy source | 400 VAC |
| Force | 10-200 |
