KIO GG 200 (kg) 230V 30 m - Electric Lifting Winch

Electric wire rope winch, Pull winch, KIO GG 200, 200 kg, 30 m, 230 V

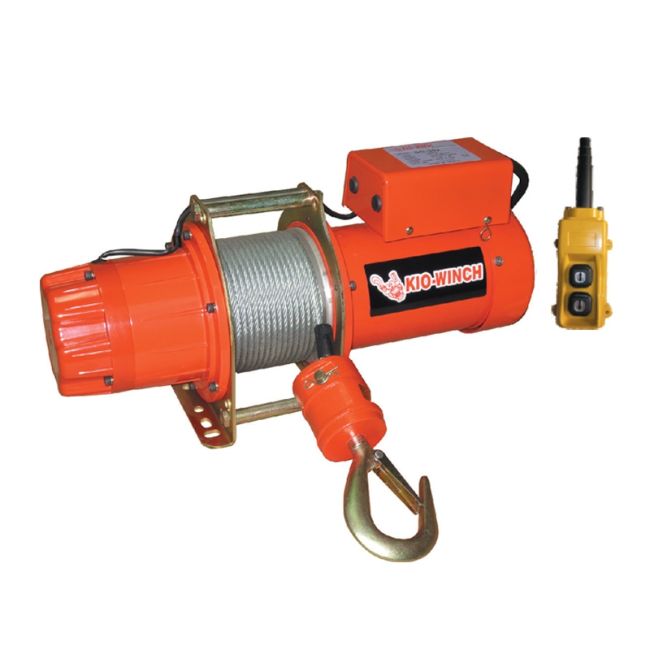

The KIO GG 200 electric wire rope winch is a powerful hoist characterized by its unique design and elegant shape. With a lifting capacity of 200 kg and a cable length of 30 m, this Pull Winch is the ideal solution for transporting building materials and other loads to upper floors and roofs.

The suspension with locking mechanism facilitates installation and ensures safe working. This Winch is particularly suitable for use on all types of scaffolding and beams. The strong powder-coated construction ensures reliable and durable lifting.

Technical data GG 200 230 V / 0.6HPx4P:

• Load capacity: 200 kg
• Lifting speed:
  • First shift: 12 m/min
  • Upper layer: 18 m/min
• Rated motor power IP44: 0.6×4 kW/bar
• Maximum lifting height: 29 m
• Steel cable: 6×30 mm
• Dimension of drum:
  • Width: 110 mm
  • Drum diameter: 94 mm
  • Flange diameter: 154 mm
• Net weight: 31 kg
• Gross weight: 33 kg

DIMENSIONS in MM GG 200 230 V:

• Model: GG-200
• Mounting: 155 mm
• C: 152 mm
• D: 6Φ-10.5 mm
• E: 265 mm
• A: 210 mm
• B: 535 mm
• Holes: Turning Roller

The KIO GG 200 electric cable winch comes with a practical cable remote control to make operation even easier.

Note: Follow the installation instructions for correct installation.
