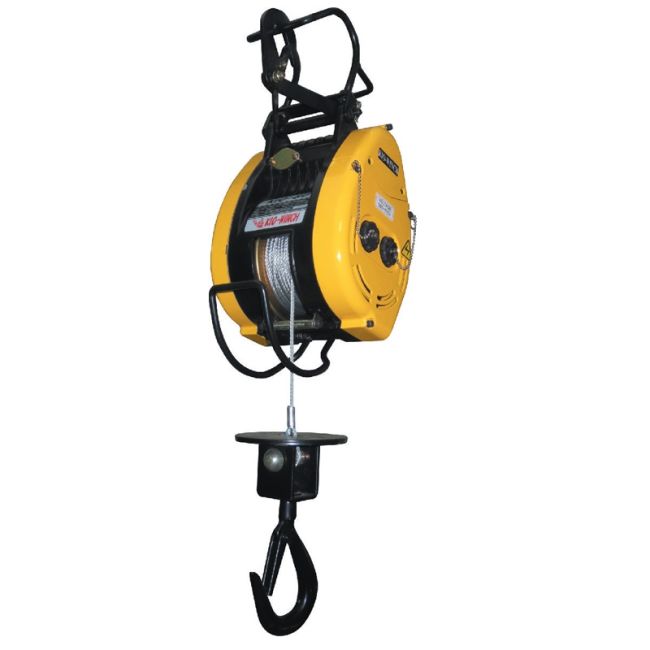

KIO 80 (kg) 230V - Electric Lifting Winch

The KIO 80 kg 230 VAC hoisting winch is an indispensable tool for construction workers and roofers. With its unique design and elegant shape, it can be easily attached to scaffolding, making the transport of construction materials to upper floors and roofs much easier and safer.

The integrated suspension with locking mechanism simplifies installation and ensures safe working. With a large usable rope length, it is the ideal lifting component for all types of scaffolding and beams. The strong powder-coated construction ensures reliable and durable hoisting.

The hoisting winch KIO 80 uses a dynamic braking system designed for both static and dynamic loads. It has an upper and lower limit switch for added safety.

Features:

• Lightweight and compact design for easy installation
• Upper lifting limit switch.
• The wire rope touches the end arm, lifting is automatically stopped
• Lower lifting limit switch. It is best to shorten the wire rope to the desired length.
• Sensor arm automatically stops the motor when the wire rope is coiled too far
• Simple pawl brake provides immediate and safe braking
• Wire rope comes with a weight hook with safety lock
• With emergency stop switch
• IP protection class: IP54
• Can also be used in other positions with an optional base plate
• Optional radio remote control
• Speed control optional
• Should not be used for passenger transport
• 2 years warranty, not on wear parts such as the rope, carbon brushes
