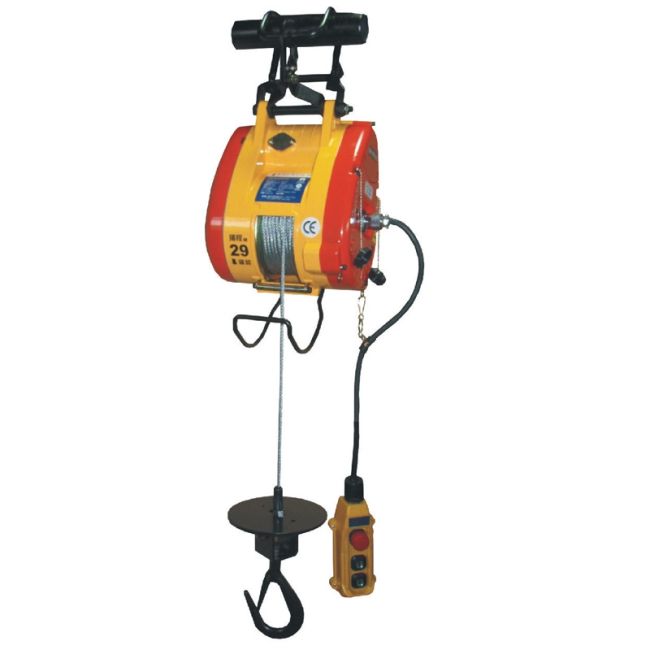

KIO 180 (kg) 230 V 30 m - Electric Lifting Winch

Its unique design and elegant shape make it easy to attach to scaffolding, making transporting building materials, etc. to upper floors and roofs much easier and safer.
The suspension with locking security facilitates installation and guarantees safe working.

The electric hoist KIO 180 kg 230 VAC is characterized by its unique design and elegant shape, which makes it easy to attach to scaffolding. This makes transporting building materials to upper floors and roofs much easier and safer.

This hoist is the ideal lifting component for all types of scaffolding and beams. With a large usable rope length, it offers construction workers and roofers maximum flexibility.

The strong powder-coated construction ensures reliable and durable hoisting. In addition, the winch has a dynamic braking system suitable for both static and dynamic loads. An upper and lower limit switch provide additional safety.

Features:

• Lightweight and compact design for easy installation
• Upper lifting limit switch.
• The wire rope touches the end arm, lifting is automatically stopped
• Lower lifting limit switch. It is best to shorten the wire rope to the desired length.
• Sensor arm automatically stops the motor when the wire rope is coiled too far
• Simple pawl brake provides immediate and safe braking
• Wire rope comes with a weight hook with safety lock
• With emergency stop switch
• IP protection class: IP54
• Can also be used in other positions with an optional base plate
• Optional radio remote control
• Speed control optional
• Should not be used for passenger transport
• 2 years warranty, not on wear parts such as the rope, carbon brushes
