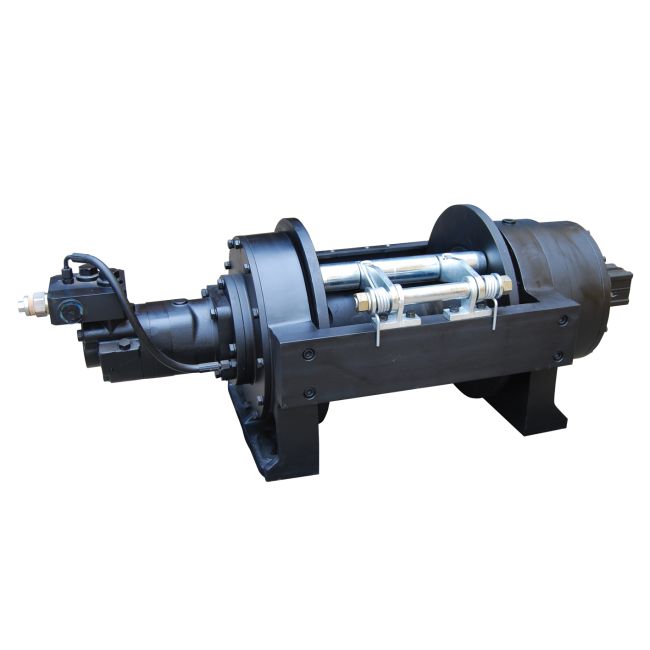

Goldwinch ZX 20 T kg HP - Hydraulic winch with 20,000 kg pulling force

The Goldwinch ZX 20 T kg HP hydraulic winch offers impressive performance and reliability for demanding tasks. With a towing capacity of 20,000 kg, it can move heavy loads effortlessly. Here are some notable features:

• Fully floating heavy-duty planetary gears: ensures reliable performance.
• Standard heavy-duty rope tensioners: ensure efficient cable routing.
• Multi-disc friction and hydro brakes: ensure precise control and safety.
• Minimum 10:1 rope to drum ratio: Optimized for effective operation.
• High-torque industrial motor: For powerful performance in all conditions.
• Standard balanced valve: For precise control and safety.
• Air coupling and manual operation: Flexibility in use.

Technical data at a glance:

• Rated tensile force per layer: 196 kN (1st layer), 160 kN (2nd layer), 138 kN (3rd layer), 120 kN (4th layer), 107 kN (5th layer)
• Maximum rope speed per layer: 7.01 m/min (1st layer), 8.35 m/min (2nd layer), 9.69 m/min (3rd layer), 11.02 m/min (4th layer), 12.37 m/min (5th layer)
• Rope (diameter x length): Ø26mm x 45m
• Drum size (diameter x length): Ø210mm x 340mm
• Fastening pattern: 532mm x 160/280mm, 8-Ø26
• Overall dimensions (L x W x H): 1224mm x 640mm x 420mm

Technical details:

• Rated torque: 22.371 Nm
• Rope capacity: 50 m
• Rope: Ø26 mm (optional available)
• Design standard: ISO 4301 & SAE J706
• Hydraulic motor: Sauer Danfoss OMT 310
• Hydraulic working pressure: 17 MPa, 120 l/min
• Freewheel clutch: Pneumatic, pressure 0.4 ~ 0.8 MPa
• Air string tensioner: Standard equipment
• Disc guide: Optional
• Oil: Industrial gear oil 220, capacity 0.8 liters
• Retaining screws: 8xM24, class 10.9
• Weight: 370 kg

The Goldwinch ZX 20 T kg HP hydraulic winch is approved to military standard GJB82-86 and offers balanced pressure valve control and a standard pressure roller for added stability.
