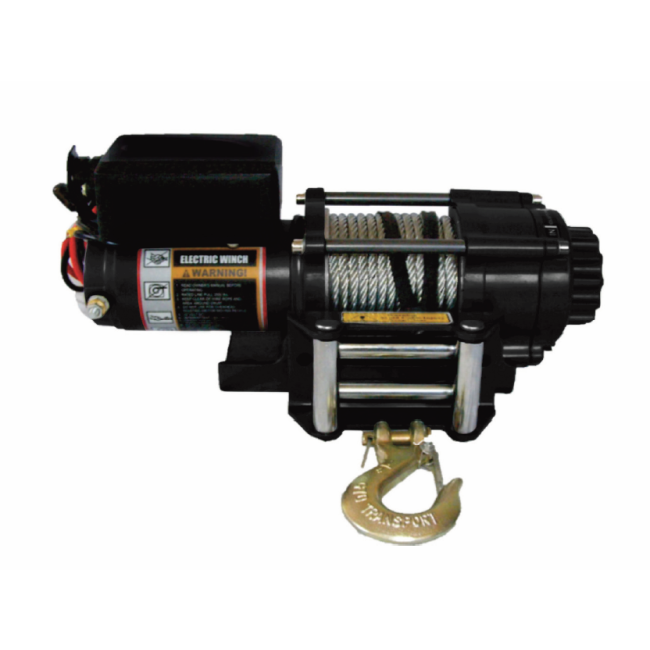

Goldwinch 1100 kg 24 Volt - Winch with unique clutch and robust steel gearbox
€175.45 €145.00
The Goldwinch 1100 EW 24 volt Winch offers unmatched performance thanks to its unique clutch, robust steel gearbox and waterproof contacts. Perfect for all conditions. Includes mounting plate for flat mounting or portable tow bar. Remote control for ATV handlebar optional.
- Rugged steel gearbox and waterproof contacts
- Mountingrob plate For flat mounting or tow bar
- Optional remote control for ATV handlebar
- Permanent magnet motor for maximum performance
- Robust construction for reliability under all conditions
SKU
3.C.4.a
EAN Number:
7439657011054
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The Goldwinch 1100 EW 24-volt Winch sets standards in performance and reliability. With its unique clutch, robust steel gearbox and waterproof contacts, it effortlessly overcomes all challenges.
Technical data:
- Rated traction force: 1134 kg
- Motor: Permanent magnet
- 12V: Input: 1.9 kW / 2.6 hp; Power: 0.8 kW / 1.1 hp
- 24V: Input: 2.4 kW / 3.2 hp; Power: 0.9 kW / 1.2 hp
- Gear ratio: 170:1
- Cable (diameter × length): Ø 4.8 mm × 14.0 m
- Drum size (diameter × length): Ø 37 mm × 80 mm
- Mounting pattern: 79.5 mm, 2-M8
- Overall dimensions (L×W×H): 323 mm × 113 mm × 112 mm
- Net weight: 9.3 kg
Application: The Winch is perfect for a variety of applications, from off-road adventures to commercial vehicles. The mounting plate allows easy installation on flat surfaces or portable tow hooks.
Note: Available with optional ATV remote control on the handlebar instead of the standard remote control.
|
SPECIFICATION |
|||
|
Rated towing capacity |
1134 kg |
||
|
Motor: permanent magnet |
12V:Input: 1.9 kW/2.6 hp; Output: 0.8 kW/1.1 hp |
||
| 24V:Input: 2.4 kW / 3.2 hp; Output: 0.9 kW / 1.2 hp | |||
|
Gear ratio |
170:1 |
||
|
Cable (Dia.× L) |
Ø 4.8mm×14.0m |
||
|
Drum Size (Dia.× L) |
Ø 37mm×80mm |
||
|
Mounting bolt pattern |
79.5mm 2-M8 |
||
|
Item |
|||
|
Overall dimensions |
|
|
|
|
Net weight |
9.3 |
||
| Pull force, speed, amps, volts (first layer): | ||||
| Line Tensile force |
Line speed m/min |
Amperage A |
||
|
Ibs (kgS) |
12V DC |
24V DC |
12V DC |
24V DC |
|
0 |
4.3 |
3.2 |
20 |
16 |
|
500(227) |
3.0 |
3.1 |
55 |
35 |
|
1500(680) |
2.3 |
2.8 |
95 |
65 |
|
2500(1134) |
1.3 |
2.5 |
160 |
100 |
| Tensile strength and rope capacity in low | ||
| Layer |
Rated line pull kg |
Total rope on the drum (m) |
|
1 |
1134 |
2.1 |
|
2 |
922 |
4.6 |
|
3 |
777 |
7.4 |
|
4 |
671 |
10.4 |
|
5 |
591 |
14.0 |
| EAN | 7439657011054 |
|---|---|
| Weight | 9.000000 |
| HS Code | 842531-00-90 |
| Energy source | 24 V |
| Force | 201-500 |
| Speed (m/min) | 6-10 |
