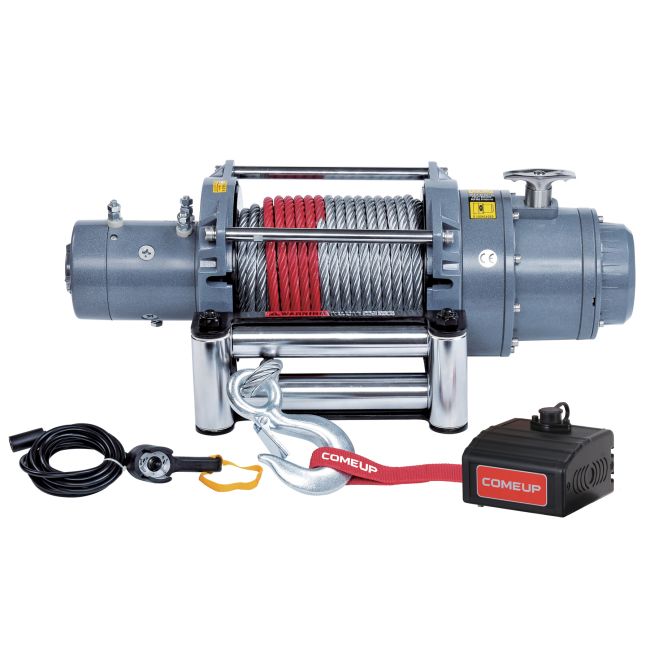

ComeUp DV 15 ES 24 volt / 6800 kg - Powerful Winch for versatile applications
€1,597.14 €1,319.95
The ComeUp DV 15 ES 24-volt Winch with a load capacity of 6800 kg is a reliable and powerful choice for demanding tasks. With its robust motor and innovative braking technology, it offers fast pulling power and safe operation.
- Rated pulling force: 6,804 kg single line
- Motor:
- 4,180 w / 5.6 hp 12V series wound
- 2,690 w / 3.6 hp 24V series wound
- Drum dimensions: 89 x 206 mm (3.5" x 8.1")
- Controls: Waterproof remote control with thermometric LED indicator and 5 m cord
- Rope dimensions: 11.1 mm x 27 m (7/16" x 89')
- Mounting bolt pattern: 254 x 165 mm (5" x 6")
- Winch Weight (including rope): 57 kg
- Gross weight: 69 kg
- Box dimensions (L x D x H): 695 x 265 x 420 mm
SKU
1.S.4
EAN Number:
7439657028014
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The ComeUp DV 15 ES 24-volt Winch is the ideal solution for demanding applications that require reliable pulling power. With a load capacity of 6800 kg and a powerful motor, it delivers impressive results in a variety of conditions.
- Technical Specifications:
- Rated pushing force: 6,804 kg when used with one cable
- Motor:
- 4,180 W / 5.6 hp (12V) series-wound
- 2,690 W / 3.6 hp (24V) series wound
- Drum dimensions: 89 x 206 mm
- Controls: Waterproof remote control with LED display and 5 m cable
- Rope dimensions: 11.1 mm x 27 m
- Attachment pattern: 254 x 165 mm
- Winch weight (including rope): 57 kg
- Gross weight: 69 kg
- Box dimensions (L x W x H): 695 x 265 x 420 mm
- Special features:
- Sealed high performance motor delivers superior torque and rope speed.
- The 3-stage planetary gearbox ensures the most reliable and durable performance of the Winch in harsh conditions.
- The patented automatic CBS (Cone Brake Structure) ensures safe holding function at full load and facilitates maintenance.
- The sealed heavy-duty guard provides reliable protection against water.
- The ergonomic T-handle allows quick rope payout.
- Thermal sensor protection with LED indicator protects against overheating.
Line speed and Amp. Pull Force (1st layer of wire rope on the drum):
|
Line Pull Force,
kg / lb |
Line Speed,
mpm / fpm |
Amp. Line pull, A
|
|
|
12V
|
24V | ||
|
No load
|
6.9 / 22
|
60
|
50 |
|
1,814 / 4,000
|
1.6 / 5.4
|
180
|
90 |
|
3,629 / 8,000
|
1.2 / 3.8
|
280
|
190 |
|
4,536 / 10,000
|
1 / 3.3
|
330
|
220 |
|
5,443 / 12,000
|
0.9 / 2.9
|
385
|
260 |
|
6,804 / 15,000
|
0.8 / 2.5
|
460
|
340 |
Rope pull and rope capacity:
|
Layer rope
|
Tensile strength per layer, kg / lb
|
Total rope on the drum, m / ft
|
|
1e
|
6,804 / 15,000
|
5.7 / 18.6
|
|
2e
|
5,569 / 12,277
|
12.6 / 41.4
|
|
3e
|
4,713 / 10,391
|
20.8 / 68.3
|
|
4e
|
4,086 / 9,007
|
27 / 89
|
Remark:
Cable winches should not be used to lift or move people.
Warranty:
Each new Winch is warranted against defects in material and workmanship for a specified period from the date of purchase. *Automotive Winch: Limited lifetime warranty on mechanical parts, one (1) year warranty on electrical parts, CABLE Winches ARE NOT covered under the warranty.
Warning:
The specified rated compressive force refers to the first layer of rope on the drum. The rope on the drum must remain 5 turns away from the drum.
Dimension, mm/in:
- 10 evenly positioned mortises provide seamless coupling transfer and allow the drum to rotate easily in 36° increments.
Accessories:
| Standard accessories | Option accessories |
|
|
| EAN | 7439657028014 |
|---|---|
| Weight | 69.000000 |
| HS Code | 842531-00-90 |
| Energy source | 24 V |
| Speed (m/min) | 0-5 |
