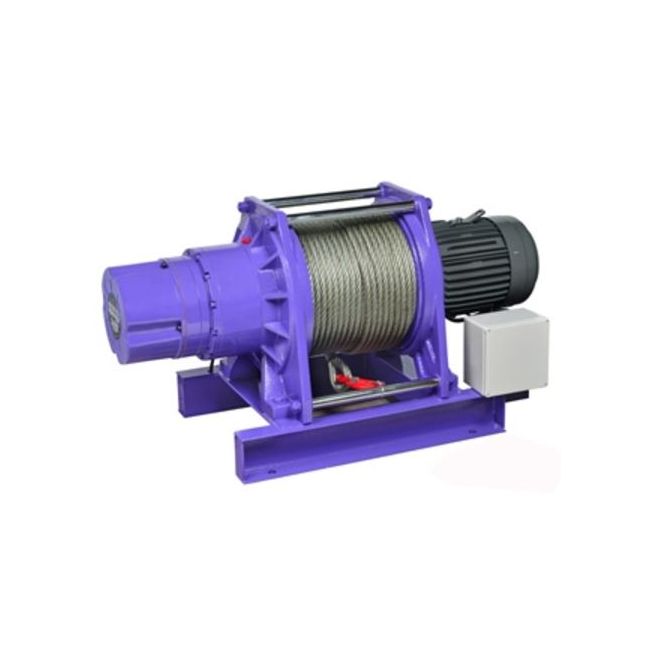

ComeUp CWG 30750 2200 kg 400V Winch

SEO Extended Description:

The ComeUp CWG 30750 Winch offers impressive performance and reliability for demanding lifting and pulling applications. With a load capacity of 2,200 kg on the top rope layer, it is ideal for a wide range of applications.

Technical Specifications:

• Lifting force: 2,200 kg on the top rope layer
• Lifting speed:
• 6.9 - 12.6 m/min
• Power supply: 3 phase, 380-440 V
• Motor rating IP54:
• 5.5 kW x 4-pole induction brake motor
• Gear ratio: 127:1
• Maximum lifting height: 97 m
• Braking methods: Electromagnetic
• Rope: 16 mm x 100 m
• Drum length: 312 mm
• Drum diameter: 178 mm
• Drum flange diameter: 410 mm
• Bolt pattern mounting: 600 mm x 499 mm
• Net weight (standard version): 400 kg
• Gross weight: 445 kg
• Dimensions (L x D x H): 1,246 x 565 x 658 mm
• Packaging dimensions (L x D x H): 1,390 x 710 x 830 mm

Performance data:

Warning:

The Winch is not intended for use for moving or lifting persons.

The specified load capacity is based on the top layer of rope on the drum.

The rope wrapped on the drum must remain 5 turns away from the drum.

Warranty:

Each new Winch is warranted against defects in material and workmanship for a period of twelve months from the date of purchase. ROPES ARE NOT INCLUDED IN THE WARRANTY.

Dimensions, mm/in:

Accessories:

Standard Accessories:

• Steel cable 16 mm x 100 m with safety hook.
• Low voltage controller LV-320
  • Remote control, CPB-161
    • Switching cable 1,25 mm2 x 3C x 3m
    • Pendulum switch CPB-161
  • Low voltage control, LV-320
• Base plate

Optional accessories:

• Low voltage control LV-320
