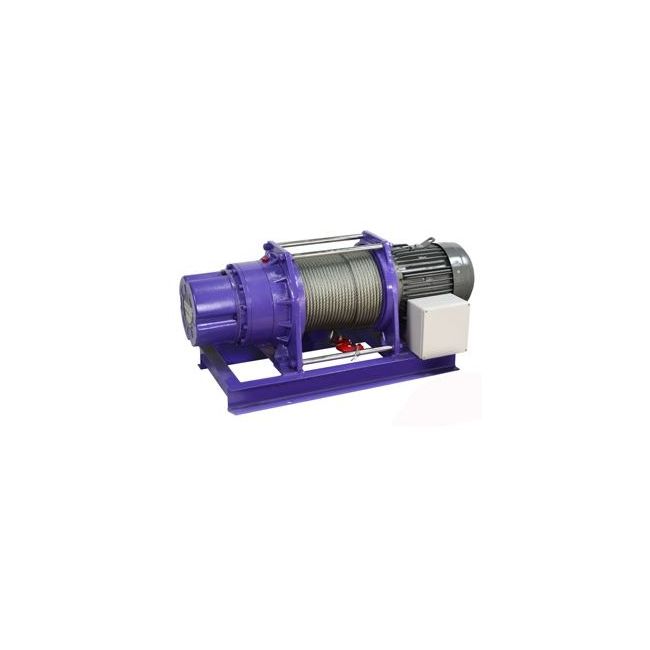

ComeUp CWG 30565 400V 1100 kg 97 m - Electric Lifting Winch
€6,352.50 €5,250.00
The ComeUp CWG 30565 Winch with a Lifting Force of 1,100 kg is a reliable workhorse for demanding tasks. With an impressive traction force of up to 7,700 kg and a lifting speed of 25 m/min, it is suitable for a wide range of applications. Made of high-quality components and equipped with an electromagnetic spring brake, it offers maximum safety and efficiency.
SKU
1.P.3 / AD.4
EAN Number:
7439657031069
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
Technical Specifications:
The ComeUp CWG 30565 Winch with a Lifting Force of 1,100 kg is a reliable workhorse for demanding tasks. With an impressive pulling force of up to 7,700 kg and a lifting speed of 25 m/min, it is suitable for a wide range of applications. Made of high-quality components and equipped with an electromagnetic spring brake, it offers maximum safety and efficiency.
Technical Specifications:
- Load capacity: 1100 kg with wire rope, upper layer
- Lifting speed:
- Option A: 14 - 25 m/min
- Option B: 9.2-16.4 m/min
- Power supply: 3 phase, 380-440 V
- Motor IP54:
- Option A: 5.5 kW x 4-pole induction brake motor
- Option B: 3.8 kW x 6-pole induction brake motor
- Gear ratio: 50:1
- Maximum lifting height: 97 m
- Braking methods: Electromagnetic brake
- Steel cable: 12 mm x 100 m
- Drum length: 312 mm
- Drum diameter: 140 mm
- Drum flange Ø 320 mm.
- Bolt pattern mounting: 620 mm x 425 mm
- Net weight (standard version): 250 kg
- Permissible total weight: 285 kg
- Dimensions winch (L x D x H): 1,120 x 470 x 520 mm
- Box dimensions (L x D x H): 1,290 x 650 x 680 mm
The ComeUp CWG 30565 Winch is equipped with an electromagnetic spring brake that guarantees absolute safety. The robust planetary gearbox guarantees maximum mechanical efficiency in any situation.
Towing capacity for different slopes in kg:
| Model | Flat surface | 10% slope / 60° | 20% slope / 11° | 40% slope / 25° | 60% slope / 31° | 80% inclination / 39° |
|---|---|---|---|---|---|---|
| CWG-30565 | 7,700 | 4,400 | 3,250 | 2,150 | 1,700 | 1,600 |
Remark:
- All ratings are based on the top layer. For each layer, the reduction in tensile force on the drum is increased by 10%.
- Use a free-running roller for double line operation to increase tensile force by approximately 85%.
- Pull capacities are based on a pull force based on 15% friction (specific applications may vary).
Warning:
The winch is in no way intended to move or lift people. Rated load capacity is based on the top layer of rope on the drum. Rope wrap on the drum is 5 packs from the drum support.
Warranty:
Each new Winch is warranted against defects in workmanship and materials for a period of 12 months from date of purchase. ROPES ARE NOT INCLUDED IN THE WARRANTY PERIOD.
Dimensions mm / in:
Accessories:
Standard Accessories.
Option Accessories
- Steel cable 12 mm x 100 m with safety hooks
- Low voltage control unit LV-320
- Remote control, CPB-161
- Switch cable 1,25 mm2 x 3C x 3m
- Control switch CPB-161
- Low voltage control unit, LV-320
- Base plate
| EAN | 7439657031069 |
|---|---|
| Weight | 285.000000 |
| HS Code | 842531-00-90 |
| Energy source | 400 VAC |
| Force | 201-500 |
| Speed (m/min) | 6-10 |
| Cable length (m) | 11-20 |
