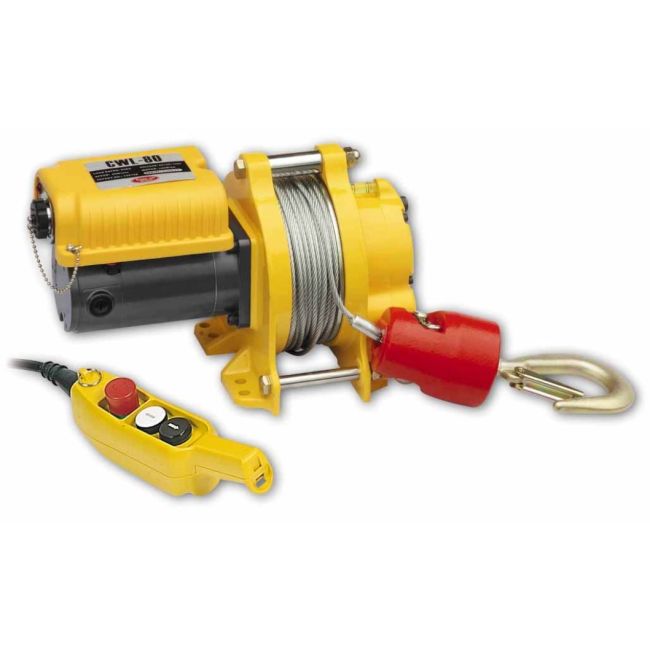

ComeUp CWL 80 (kg) 230 V - Electric Lifting Winch

• Lightweight and compact design for easy installation


• Single mechanical ratchet brake provides instant and safe braking


• Operates on standard household mains power


• Wire rope comes with a weight hook with safety interlock


• Closed drum flange prevents cable entrapment between drum and support castings


• Emergency stop switch is available upon request

Recommended fuse / Avisierter Sicherung / Gasified fuse 25Amp / C slow

E.g. / equal / e.g.: EATON PKNM-25/1N/C/03-A-MW C-K25A 300MA

• Lifting capacity: 80 kg with wire rope top layer


• Lifting speed: 16 - 25 m/min


• Motor rating IP44:
  1 phase, 110V: 0.3 kw x 6A series wound
  1 phase, 220-240V: 0.3 kw x 3A series wound


• Gear ratio: 56:1


• Maximum lifting height: 23 m


• Braking methods:
  for motor: Electromagnetic
  for transmission: Single mechanical ratchet


• Steel cable: 4 mm x 24 m


• Drum length: 46 mm


• Drum diameter: 70 mm


• Drum flange diameter 158 mm


• Fastening bolt pattern : 120 mm x 90 mm ; 125 mm x 135 mm


• Net weight, kg (standard version) : 16 kg


• Gross weight: 18 kg


• Housing dimensions (L x D x H): 344 x 200 x 210 mm


• Cabinet dimensions(L x D x H): 376 x 330 x 240 mm

The above performance data is based on 50Hz power supply. (60Hz motor available as option, resulting in 20% reduction in lifting capacity and 20% increase in speed.

Lifting capacity, lifting speed and cable capacity:

Remark:
1The above performance values are based on 50Hz power supply.

Traction force for different slope angles in kg

Note:
1 . All ratings are based on the top layer. For each layer reduction on the drum, the line pull is increased by 10%.
2. use a grip block for use with a double line to increase line pull by approximately 85%.
3. the pulling capacities are based on a pulling force and 15% friction has been taken into account (specific applications may vary).

Warning
The Winch is not intended for moving or lifting persons.
The rated lifting capacity shown is based on the top rope wrap on the drum.
The rope wrap on the drum must remain 5 wraps from the drum

Warnung / Warning / Waarschuwing

DE: Nie mit der Winde direkt auf und gleich wieder ab fahren (tokkelen).

Oder schnell hintereinander kurze Strecken heben oder senken ( inching ). Gib es Zeit!!

NL: Nooit tokkelen met de lier, dus direct omhoog en omlaag, of korte stukjes omhoog of omlaag.

Geef de lier de tijd haar energie even af te voeren.

GB: Never Plugging ( Instant reverse-wind ) or INCHING !

EN: Avoid slack rope and crooked lifting.

This will cause the rope to become tangled. Wind the rope properly before lifting again.

Never use the winch itself to hoist the rope when it is twisted. This will damage the winch motor.

EN: Before you start, the cable must be pulled and released. Then the cable will be pushed through the bottom layer and out of the drum.

Do not try to release the cable with the cable itself. Then the motor will break

GB: Prevent rope from coming loose. Always hoist vertically. The rope may get stuck in the under layers or the rope may end up next to the drum.

Never try to repair the layers with the Winch itself. This will damage the Winch.
