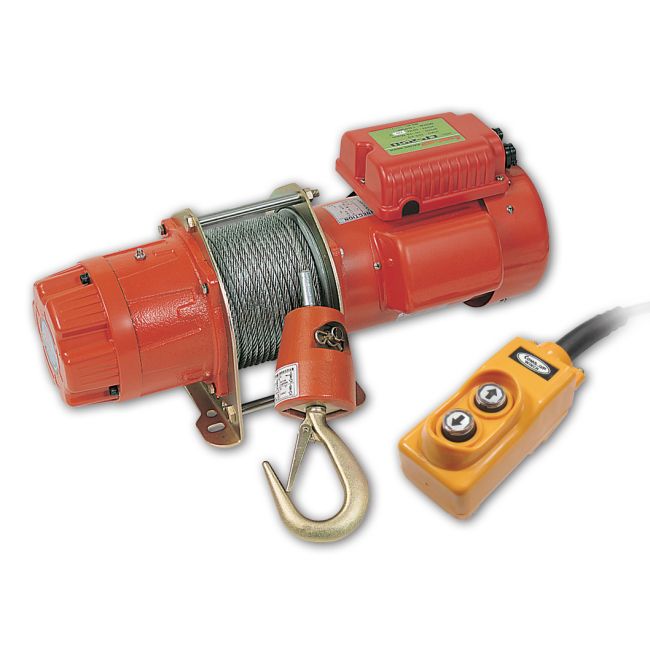

CP-300 (kg) 230 V
- Positive attachment of wire rope to drum
- Electromagnetic spring break brake
- Heavy duty high efficiency ball bearings on all running surfaces
- Planetary gears for maximum mechanical efficiency
- Closed drum flanges to prevent cable entrapment between drum and steel support plates
- Quiet operation
- Emergency stop switch is available on request
- Low voltage control is available on request
- Lifting capacity: 300 kg on steel cable top layer
- Lifting speed: 10 - 15 m/min
- Power source: 1 phase, 110V or 220-240V
- Motor rating IP44: 1.1 kw x 4 poles induction brake motor
- Gear ratio: 43:1
- Maximum lifting height: 29 m
- Braking methods: Electromagnetic
- Steel cable: 6 mm x 30 m
- Drum length: 110 mm
- Drum diameter: 94 mm
- Drum flange diameter: 154 mm
- Fastening bolt pattern: 142 mm x 142 mm
- Net weight, kg (standard version) : 38 kg
- Gross weight: 40 kg
- Tray dimensions (L x D x H): 548.5 x 210 x 241 mm
- Box dimensions(L x D x H): 650 x 286 x 285 mm
The above performance is based on 50Hz power supply. (60Hz motor available as option resulting in 20% reduction in lifting capacity and 20% increase in speed.
Lifting capacity, lifting speed and cable capacity:
|
Low steel cable
|
Lifting capacity, kg
|
Lifting speed, m/min
|
Total cable on drum, m |
|
1e
|
444
|
10
|
5.4 |
|
2e
|
396
|
11.3
|
11.5 |
|
3e
|
358
|
12.5
|
18.3 |
|
4e
|
327
|
13.8
|
25.7 |
|
5e
|
300
|
15
|
30 |
Note: The above performance values are based on 50Hz power supply.
Traction force for different slope angles in kg
|
Model
|
Horizontal
|
Slope % slopes / angle in degrees
|
||||
|
10% 60°
|
20% 11°
|
40% 25°
|
60% 31°
|
80% 39°
|
||
|
CP-300
|
2,250
|
1,200
|
900
|
600
|
500
|
400 |
Note:
1 . All ratings are based on the top layer. For each layer reduction on the drum, the line pull is increased by 10%.
2. use a grip block for use with a double line to increase line pull by approximately 85%.
3. the pulling capacities are based on a pulling force and 15% friction has been taken into account (specific applications may vary).
Warning
The Winch is not intended for moving or lifting persons.
The rated lifting capacity shown is based on the top rope wrap on the drum.
The rope wrap on the drum must remain 5 wraps from the drum
Each new Winch is warranted against defects in workmanship and materials for a period of twelve months from the date of purchase.
CABLES ARE NOT COVERED UNDER WARRANTY.
Accessories:
| Standard Accessories. | Option Accessories |
|
|
