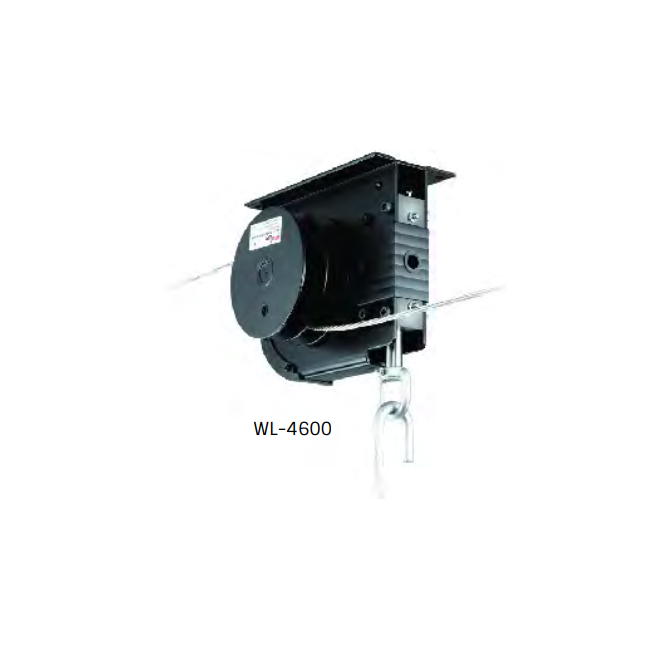

Tiger WL-4600 ceiling winch - double cable, 2090 kg load capacity, self-braking, heavy duty worm gear winch
€586.79 €484.95
The Tiger WL-4600 overhead winch with a load capacity of 2090 kg impresses with its dual cable function and self-braking heavy-duty worm gear winch. Available in regular or split drum for use with two cables. Fully sealed for environmental protection.
| Product Code |
Lifting capacity (first layer) |
Lifting capacity (last layer) |
Manual force (kg) |
Transmission ratio |
Stroke diameter (mm) |
Unit weight (with loop) (kg) |
Cable diameter (mm/inch) |
Cable storage cap. (m) |
| WL-4600 | 4600/2090 | 2285/1035 | 6 | 65:1 | Ø65 | 12.5 | Ø6.4 / Ø1/4 | 11*2 |
SKU
4.E.2.b
EAN Number:
7439657043017
Certification Mark
Warum winch-shop.eu?
- All items in stock – shipped directly from our own warehouse
- Directly from the manufacturer
- Fast delivery (1-3 days)
- Own service workshop
The Tiger WL-4600 ceiling winch offers a load capacity of 2090 kg with its dual rope function. The heavy duty Worm Gear winch is self-braking and can be configured with a normal or split drum to operate two cables or ropes. Fully sealed to protect against dust, dirt and moisture.
Technical Specifications:
- Load capacity: 2090 kg.
- Self-locking
- Available in regular or split drum for greater versatility
- Fully sealed against environmental influences
- No rope included
- No loop drive arm included
| EAN | 7439657043017 |
|---|---|
| Weight | 5.000000 |
| HS Code | 842531-00-90 |
| Energy source | Hand driven |
