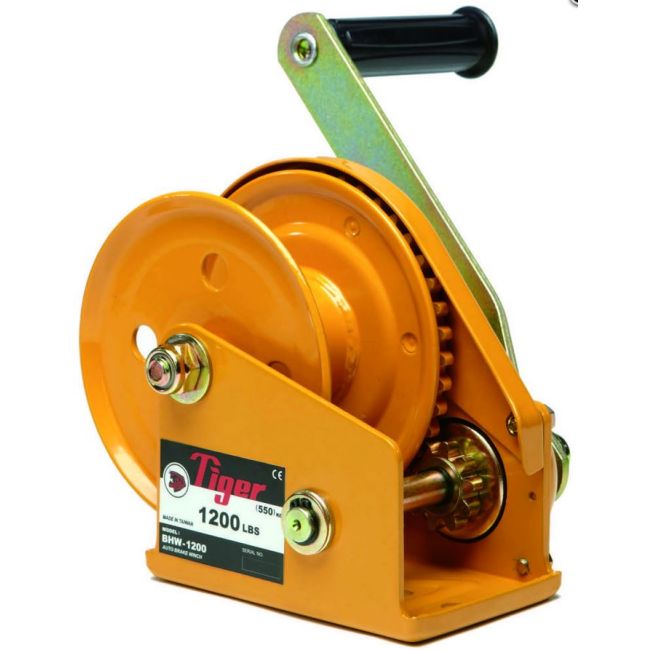

Tiger BHW-1200 / 550 kg pulling force / 275 kg stroke - High performance hand winch with brake clutch

The Tiger BHW-1200 is a versatile and high-quality hand winch with an impressive 550 kg pulling force and 275 kg lifting capacity. This winch is equipped with a brake clutch for safe lifting and lowering. The powder-coated surface provides excellent corrosion protection.

The Twin-Pawl automatic brake ensures that the load remains safely in place when the crank is released and prevents uncontrolled lowering of the load. This hand winch is suitable for use with both rope and Tape (optional).

The Tiger BHW-1200 meets and exceeds all requirements of BS EN 13157: 2004+A1:2009 and the gears and brakes are fully covered to prevent contamination from dust, dirt and rain. The winch has a universal mounting plate, an automatic load-activated brake and heat-treated gears.

With several models (800 lb, 1200 lb, 1800 lb and 2600 lb), this compact, lightweight and rugged design is ideal for use with rope and Tape. Operation requires little effort and the winch meets the highest quality standards.

Technical Specifications:

• Traction force: 550 kg
• Lifting capacity: 275 kg
• Option for rope or webbing
• Universal mounting plate
• Powder coated surface
• Automatic load-activated brake
• Models: 800 lb, 1200 lb, 1800 lb and 2600 lb

Applications: The Tiger BHW-1200 is perfect for a variety of applications requiring a reliable hand winch.

Special features:

• High performance hand winch with brake clutch
• Versatile use for lifting and pulling
• Suitable for rope or Tape (optional)
• Complies with standards BS EN 13157: 2004+A1:2009
• Compact, lightweight and robust design

Target audience: The Tiger BHW-1200 is intended for users looking for a reliable hand winch with brake clutch for various applications.
