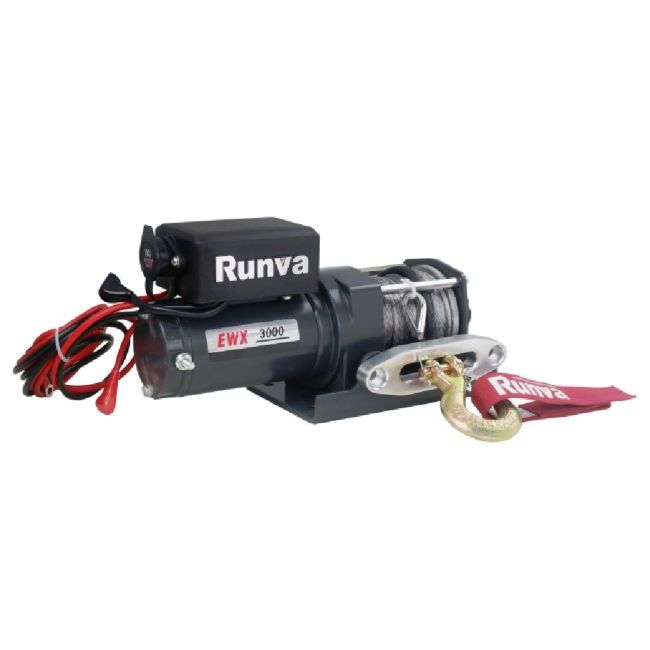

RUNVA SR 1361 (kg) E 24V - High quality radio remote control . Synthetic rope

The RUNVA SR 1361 Winch, powered by 24V, impresses with a 3000 lbs (1361 kg) pulling force and a high-quality radio remote control. Synthetic rope and rugged design make it a reliable choice for a variety of applications.

Technical Specifications (EWX3000):

• Rated tensile force: 1361 kg
• Motor: Permanent magnet, 12V (2.2kW / 0.8kW) / 24V (2.4kW / 0.9kW)
• Gear ratio: 153:1
• Cable (diameter × length): Ø3/16"×46'(Ø4.8mm×14m)
• Drum size (diameter × length): Ø1.24"×2.87"(Ø31.5mm×73mm)
• Mounting pattern: 79.5mm (3.13") 2-M8
• Overall dimensions (L×W×H): 12.8"×4.5"×4.3" (324mm ×113mm ×108mm)
• Net weight: 9.5 kg

Tensile force, speed, amps, voltage (first layer):

• 0 Ibs: 3.1 m/min (10.2 ft/min) / 3.0 m/min (9.8 ft/min) - 18 A / 15 A (12V DC / 24V DC)
• 1000 Ibs: 2.3 m/min (7.5 ft/min) / 2.7 m/min (8.9 ft/min) - 90 A / 45 A (12V DC / 24V DC)
• 2000 Ibs: 1.8 m/min (5.9 ft/min) / 2.3 m/min (7.5 ft/min) - 130 A / 65 A (12V DC / 24V DC)
• 3000 Ibs: 4.3 ft/min (1.3 m/min) / 6.2 ft/min (1.9 m/min) - 180 A / 100 A (12V DC / 24V DC)

Pull force and rope capacity in position:

• Layer 1: 3000 Ibs (1361 kg) - 5.6 ft (1.7 m)
• Layer 2: 1075 kg - 3.7 m (12.1 ft)
• Layer 3: 1960 Ibs (889 kg) - 19.7 ft (6.0 m)
• Layer 4: 756 kg (1670 Ibs) - 8.5 m (27.9 ft)
• Layer 5: 1460 Ibs (662 kg) - 37.1 ft (11.3 m)
• Layer 6: 585 kg (1290 Ibs) - 14.0 m (45.9 ft)

WARNING: Read the safety guidelines before using the Winch.

Warranty: This Winch comes with a warranty. Please refer to the warranty policy for more information.
